KMS Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 160VOLTS 2200UF 20% TOL.

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Capacitance	Mounting Type	Size / Dimension	Size / Dimension [diameter]	Polarization	Package / Case	Applications	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Voltage - Rated	Ripple Current @ Low Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKMS161VSN222MR45S	47.5 mm	1.87 in	20 %	2200 µF	Through Hole	30 mm	1.181 "	Polar	Radial Can - Snap-In	General Purpose	6.075 A	-40 C	105 ░C	0.394 in	10 mm	160 V	4.05 A	3000 Hrs
Chemi-Con EKMS421VSN331MR35S	37.5 mm	1.476 in	20 %	330 µF	Through Hole	30 mm	1.181 "	Polar	Radial Can - Snap-In	General Purpose	2.1164 A	-40 C	105 ░C	0.394 in	10 mm	420 V	1.48 A	3000 Hrs
Chemi-Con EKMS551VSN471MA60S			20 %	470 µF	Through Hole		1.378 "	Polar	Radial Can - Snap-In	General Purpose	2.9029 A	-40 C	105 ░C	0.394 in	10 mm	550 V	2.03 A	3000 Hrs	35 mm	60 mm	2.362 in

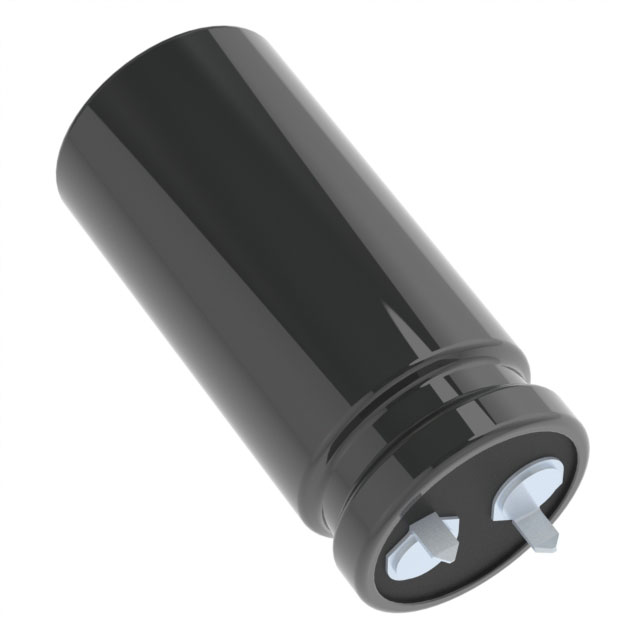

Chemi-Con EKMS421VSN221MP45S	47.5 mm	1.87 in	20 %	220 µF	Through Hole		0.866 "	Polar	Radial Can - Snap-In	General Purpose	1.6731 A	-40 C	105 ░C	0.394 in	10 mm	420 V	1.17 A	3000 Hrs	22 mm
Chemi-Con EKMS251VSN331MP30S			20 %	330 µF	Through Hole		0.866 "	Polar	Radial Can - Snap-In	General Purpose	1.935 A	-40 C	105 ░C	0.394 in	10 mm	250 V	1.29 A	3000 Hrs	22 mm	32.5 mm	1.28 in
Chemi-Con EKMS251VSN271MP25S	27.5 mm	1.083 in	20 %	270 µF	Through Hole		0.866 "	Polar	Radial Can - Snap-In	General Purpose	1.665 A	-40 C -25 °C	105 ░C	0.394 in	10 mm	250 V	1.11 A	3000 Hrs	22 mm

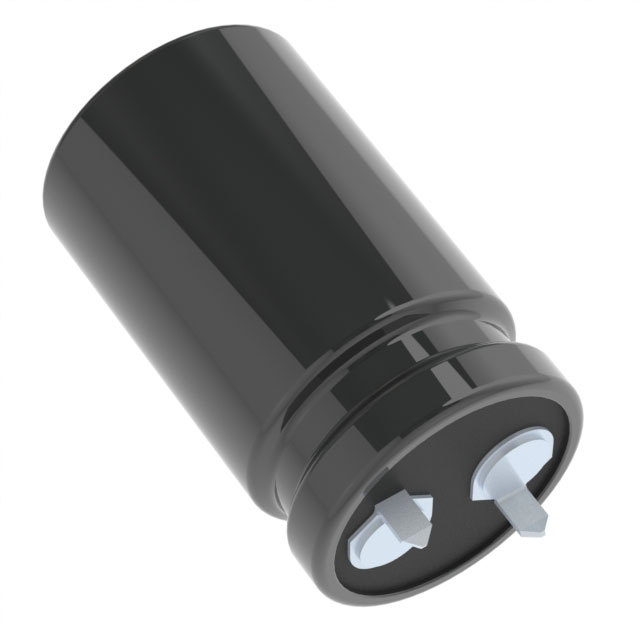

Chemi-Con EKMS451VSN121MP35S	37.5 mm	1.476 in	20 %	120 µF	Through Hole		0.866 "	Polar	Radial Can - Snap-In	General Purpose	1.1869 A	-40 C -25 °C	105 ░C	0.394 in	10 mm	450 V	830 mA	3000 Hrs	22 mm
Chemi-Con EKMS601VSN121MR35S			20 %	120 µF	Through Hole	30 mm	1.181 "	Polar	Radial Can - Snap-In	General Purpose	1.3299 A	-40 C	105 ░C	0.394 in	10 mm	600 V	930 mA	3000 Hrs		35 mm	1.378 "

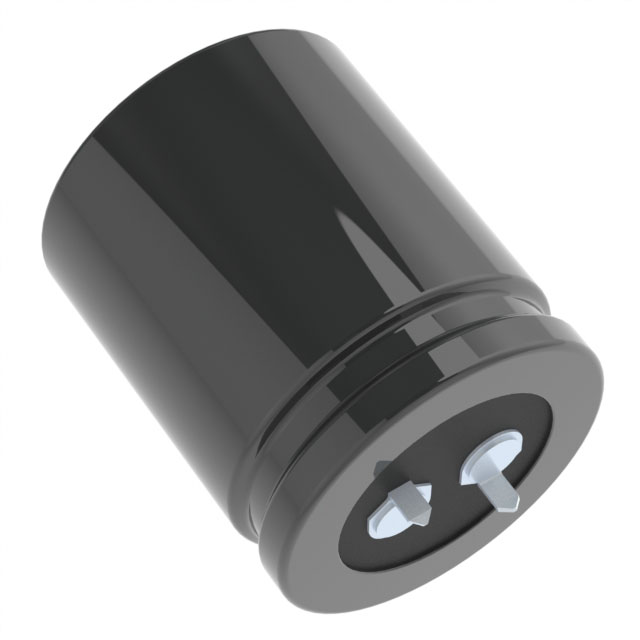

Chemi-Con EKMS201VSN182MA40S	42.5 mm	1.673 in	20 %	1800 µF	Through Hole		1.378 "	Polar	Radial Can - Snap-In	General Purpose	5.715 A	-40 C -25 °C	105 ░C	0.394 in	10 mm	200 VDC	3.81 A	3000 Hrs	35 mm
Chemi-Con EKMS251VSN561MP45S	47.5 mm	1.87 in	20 %	560 µF	Through Hole		0.866 "	Polar	Radial Can - Snap-In	General Purpose	2.685 A	-40 C	105 ░C	0.394 in	10 mm	250 V	1.79 A	3000 Hrs	22 mm
