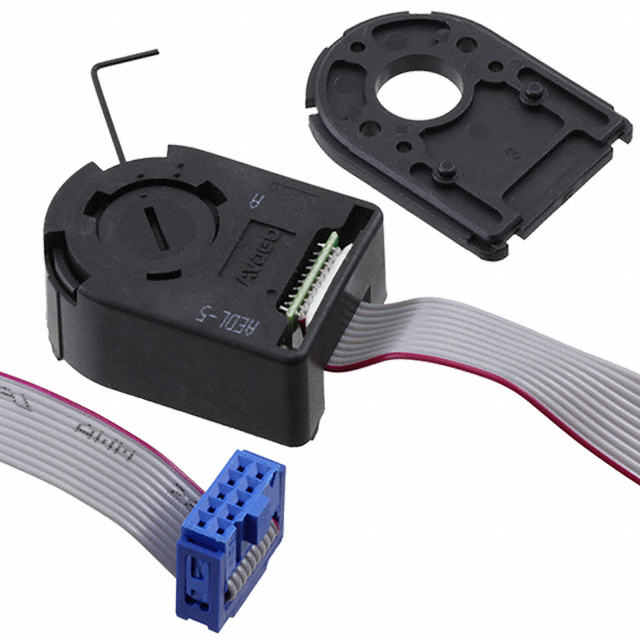

AEDL-5810 Series
Manufacturer: Broadcom Limited
Beta
⌘K
ENCODERS KIT EN,L DRV,3CH 5000CPR,6MM
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Detent | Actuator Type | Output Type | Pulses per Revolution | Encoder Type | Built in Switch | Termination Style | Orientation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 5000 | Optical | |||||
Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 1024 | Optical | |||||
 Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 1000 | Optical | Cable with Connector | Right Angle | Chassis Mount Motors | ||
Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 1024 | Optical | |||||
Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 2500 | Optical | |||||
Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 1000 | Optical | Cable with Connector | Right Angle | Chassis Mount Motors | ||
Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 5000 | Optical | |||||
Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 2500 | Optical | |||||
Broadcom Limited | 5.5 V | 4.5 V | Shaft | Quadrature with Index (Incremental) | 2048 | Optical |
