ADP1713 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC REG LDO 0.75V 0.3A TSOT23-5

Part	Number of Regulators	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Control Features	Voltage Dropout (Max)	Mounting Type	Voltage - Input (Max)	Voltage - Output (Min/Fixed)	PSRR	Current - Quiescent (Iq)	Output Configuration	Current - Supply (Max)	Current - Output	Package Name	Package / Case	Protection Features	Regulator Type	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Utilized IC / Part	Voltage - Output	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Contents
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-0.75R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.23 V	Surface Mount	5.5 V	0.75 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)

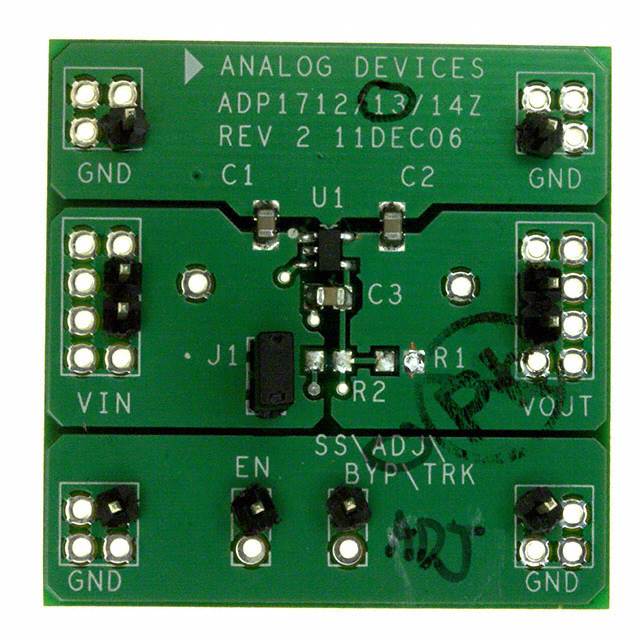

Analog Devices Inc./Maxim Integrated ADP1713-3.3-EVALZ														300 mA				Positive Fixed	5 V	2.5 V	ADP1713	3.3 V	1	Single	1	Board
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-1.2-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.23 V	Surface Mount	5.5 V	1.2 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-1.5-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.23 V	Surface Mount	5.5 V	1.5 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-3.3-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.27 V	Surface Mount	5.5 V	3.3 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-1.8-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.23 V	Surface Mount	5.5 V	1.8 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-1.0-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.23 V	Surface Mount	5.5 V	1 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-1.3-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.23 V	Surface Mount	5.5 V	1.3 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-2.5-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.27 V	Surface Mount	5.5 V	2.5 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices Inc./Maxim Integrated ADP1713AUJZ-3.0-R7	1	Fixed	125 °C	-40 °C	Bypass Enable	0.27 V	Surface Mount	5.5 V	3 V	72 dB	70 µA	Positive	420 µA	300 mA	TSOT-23-5	SOT-23-5 Thin TSOT-23-5	Over Current Over Temperature Under Voltage Lockout (UVLO)
