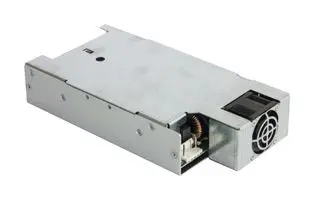

ABC601 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
POWER SUPPLY, AC-DC, 24V, 25A ROHS COMPLIANT: YES
| Part | Minimum Load Required | Features | Type | Approval Agency | Efficiency | Voltage - Isolation | Applications | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Power (Watts) | Standard Number | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Output 1 | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | Enclosed | CE cURus DEMKO | 94 % | 4000 V | ITE (Commercial) Medical | Chassis Mount | 300 V 305 VAC | 85 VAC 170 VDC | 1 | 70 °C | -20 °C | 24 V | 600 W | 60601-1 60950-1 | 206 mm | 1.61 " | 41 mm | 107 mm | 8.11 in | 4.21 in | 25 A | ||
 Bel Fuse Inc. | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | Open Frame | CE cURus DEMKO | 94 % | 4000 V | ITE (Commercial) Medical | Chassis Mount | 300 V 305 VAC | 85 VAC 170 VDC | 1 | 70 °C | -20 °C | 24 V | 600 W | 60601-1 60950-1 | 178.5 mm | 1.61 " | 41 mm | 107 mm | 7.03 in | 4.21 in | 25 A | ||
Bel Fuse Inc. | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | Open Frame | CE cURus DEMKO | 94 % | 4000 V | ITE (Commercial) Medical | Chassis Mount | 300 V 305 VAC | 85 VAC 170 VDC | 1 | 70 °C | -20 °C | 48 V | 600 W | 60601-1 60950-1 | 178.5 mm | 1.61 " | 41 mm | 107 mm | 7.03 in | 4.21 in | 12.5 A | ||
 Bel Fuse Inc. | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | Open Frame | CE cURus DEMKO | 94 % | 4000 V | ITE (Commercial) Medical | Chassis Mount | 300 V 305 VAC | 85 VAC 170 VDC | 1 | 70 °C | -20 °C | 601 W | 60601-1 60950-1 | 178.5 mm | 1.61 " | 41 mm | 107 mm | 7.03 in | 4.21 in | 16.7 A | 36 V |
