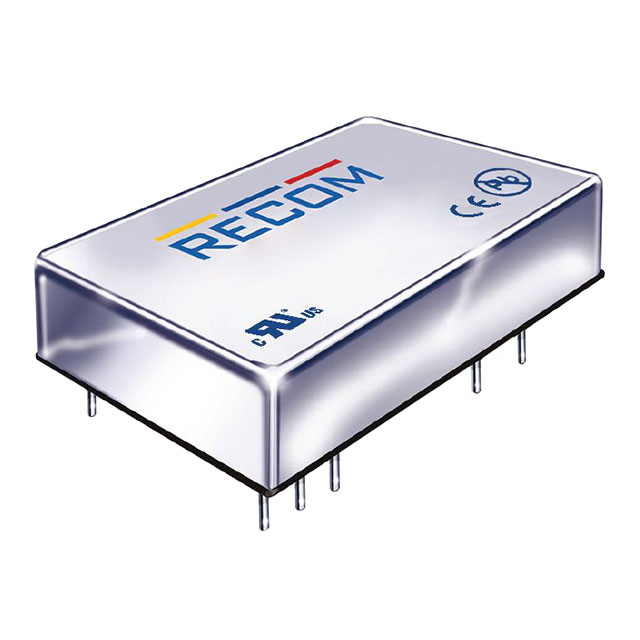

RP08-AW Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 8W DC/DC 1.6KV REG 43-160VIN +/-15VOUT

Part	Features	Current - Output (Max) [Max]	Package / Case	Control Features	Voltage - Isolation	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Output 1	Applications	Power (Watts)	Type	Current - Output (Max)	Current - Output (Max)

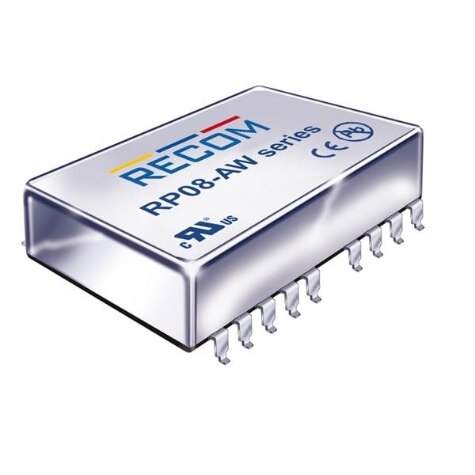

Recom Power RP08-11015DAW/SMD	Remote On/Off SCP UVLO	267 mA	24-SMD Module 18 Leads	Active High Enable	1.6 kV	43 V	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	-15 V	78 °C	-40 C	2	160 V	85 %	Surface Mount	15 V	ITE (Commercial) Railway	8 W	Isolated Module
Recom Power RP08-2415SAW/SMD	OCP OVP Remote On/Off SCP	533 mA	24-SMD Module 18 Leads	Active High Enable	1.6 kV	9 V	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm		85 °C	-40 C	1	36 V	85 %	Surface Mount	15 V	ITE (Commercial) Railway	8 W	Isolated Module
Recom Power RP08-4812SAW/SMD	OCP OVP Remote On/Off SCP	666 mA	24-SMD Module 18 Leads	Active High Enable	1.6 kV	18 V	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm		85 °C	-40 C	1	75 V	86 %	Surface Mount	12 V	ITE (Commercial) Railway	8 W	Isolated Module
Recom Power RP08-2412DAW/SMD	OCP OVP Remote On/Off SCP		24-SMD Module 18 Leads	Active High Enable	1.6 kV	9 V	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	-12 V	85 °C	-40 C	2	36 V	86 %	Surface Mount	12 V	ITE (Commercial) Railway	8 W	Isolated Module	333 mA
Recom Power RP08-11005DAW	Remote On/Off SCP UVLO		24-DIP Module 9 Leads	Active High Enable	1.6 kV	43 V	0.4 "	0.8 "	10.2 mm	1.25 in	20.3 mm	31.8 mm	-5 V	78 °C	-40 C	2	160 V		Through Hole	5 V	ITE (Commercial) Railway	8 W	Isolated Module	800 mA	800 mA
Recom Power RP08-2412SAW	OCP OVP Remote On/Off SCP	666 mA	24-DIP Module 9 Leads	Active High Enable	1.6 kV	9 V	0.4 "	0.8 "	10.2 mm	1.25 in	20.3 mm	31.8 mm		85 °C	-40 C	1	36 V	86 %	Through Hole	12 V	ITE (Commercial) Railway	8 W	Isolated Module
Recom Power RP08-4805SAW/SMD	OCP OVP Remote On/Off SCP	1.5 A	24-SMD Module 18 Leads	Active High Enable	1.6 kV	18 V	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm		85 °C	-40 C	1	75 V	83 %	Surface Mount	5 V	ITE (Commercial) Railway	8 W	Isolated Module
Recom Power RP08-2415DAW/SMD	OCP OVP Remote On/Off SCP	267 mA	24-SMD Module 18 Leads	Active High Enable	1.6 kV	9 V	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	-15 V	85 °C	-40 C	2	36 V	85 %	Surface Mount	15 V	ITE (Commercial) Railway	8 W	Isolated Module
Recom Power RP08-11012SAW	Remote On/Off SCP UVLO	666 mA	24-DIP Module 9 Leads	Active High Enable	1.6 kV	43 V	0.4 "	0.8 "	10.2 mm	1.25 in	20.3 mm	31.8 mm		78 °C	-40 C	1	160 V	86 %	Through Hole	12 V	ITE (Commercial) Railway	8 W	Isolated Module
Recom Power RP08-243.3SAW/SMD	OCP OVP Remote On/Off SCP	2 A	24-SMD Module 18 Leads	Active High Enable	1.6 kV	9 V	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm		85 °C	-40 C	1	36 V	80 %	Surface Mount	3.3 V	ITE (Commercial) Railway	8 W	Isolated Module
