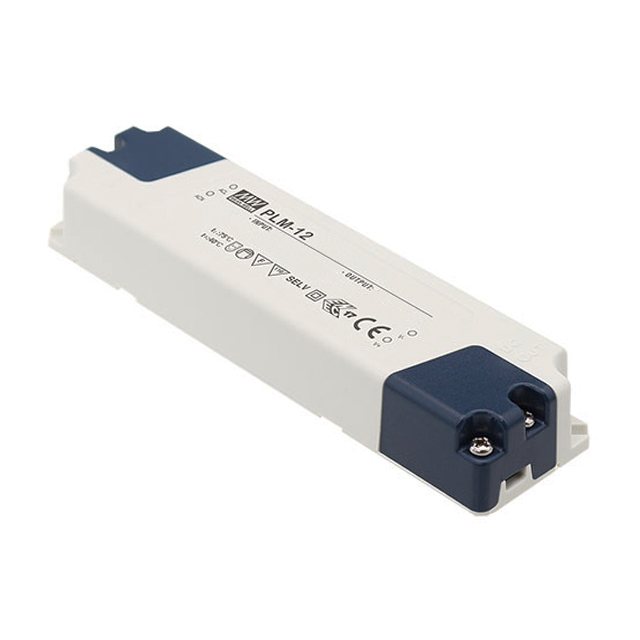

PLM-12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRVR CC AC/DC 11-18V 700MA
| Part | Mounting Type | Topology | Voltage - Input (Max) [Max] | Ratings | Voltage - Isolation | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Voltage - Output [Min] | Voltage - Output [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Current - Output (Max) [Max] | Approval Agency | Voltage - Input (Min) [Min] | Number of Outputs | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | AC DC Converter | 295 VAC | IP30 | 3750 VDC | SCP | -30 ░C | 50 °C | Terminal Block | 11 V | 18 V | 38 mm | 1.5 " | 0.87 in | 5.71 " | 145 mm | 22 mm | 13 W | 700 mA | CB CE cURus ENEC | 110 VAC | 1 | Constant Current | 83 % |
MEAN WELL USA Inc. | Chassis Mount | AC DC Converter | 295 VAC | IP30 | 3750 VDC | SCP | -30 ░C | 50 °C | Terminal Block | 7 V | 12 V | 38 mm | 1.5 " | 0.87 in | 5.71 " | 145 mm | 22 mm | 13 W | 1.05 A | CB CE cURus ENEC | 110 VAC | 1 | Constant Current | 81 % |
