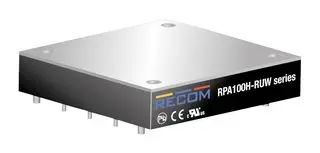

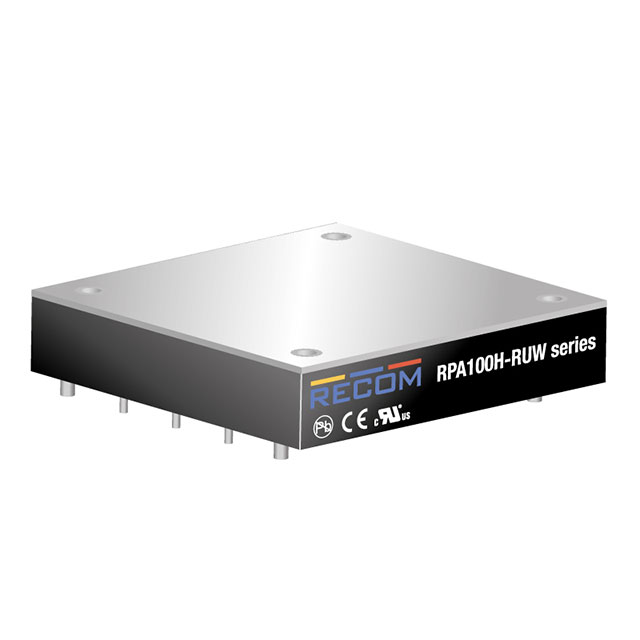

RPA100H-RUW Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 100W 16.8-137.5VIN 12VOUT 8.5A HB
| Part | Voltage - Input (Min) [Min] | Applications | Number of Outputs | Power (Watts) | Features | Voltage - Isolation | Type | Package / Case | Control Features | Mounting Type | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Voltage - Output 1 | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 16.8 V | ITE (Commercial) Railway | 1 | 102 W | Adjustable Output Remote On/Off Remote Sense | 4.2 kV | Isolated Module | 10-DIP Module | Active Low Enable | Through Hole | 137.5 V | 8.5 A | 12 V | 90 % | 97 °C | -40 °C | |
 Recom Power | 16.5 V | ITE (Commercial) Railway | 1 | 101 W | OCP OTP OVP Remote On/Off UVLO | 3000 V | Isolated Module | Half Brick | Through Hole | 140 V | 2.1 A | 48 V | 90 % | 97 °C | -40 °C | Half Brick | |
Recom Power | 16.8 V | ITE (Commercial) Railway | 1 | 101 W | Adjustable Output Remote On/Off Remote Sense | 4.2 kV | Isolated Module | 10-DIP Module | Active Low Enable | Through Hole | 137.5 V | 4.2 A | 24 V | 88 % | 97 °C | -40 °C | |
 Recom Power | 16.5 V | ITE (Commercial) Railway | 1 | 101 W | OCP OTP OVP Remote On/Off UVLO | 4.242 kV | Isolated Module | Half Brick | Through Hole | 140 V | 6.7 A | 15 V | 93 % | 97 °C | -40 °C | Half Brick | |
 Recom Power | 16.5 V | ITE (Commercial) Railway | 1 | 101 W | OCP OTP OVP Remote On/Off UVLO | 3000 V | Isolated Module | Half Brick | Through Hole | 140 V | 2.1 A | 48 V | 90 % | 97 °C | -40 °C | Half Brick | |
Recom Power | 16.5 V | ITE (Commercial) Railway | 1 | 101 W | OCP OTP OVP Remote On/Off UVLO | 4.242 kV | Isolated Module | Half Brick | Through Hole | 140 V | 6.7 A | 15 V | 93 % | 97 °C | -40 °C | Half Brick | |
Recom Power | 16.8 V | ITE (Commercial) Railway | 1 | 100 W | OCP OTP OVP Remote On/Off UVLO | 4.2 kV | Isolated Module | 10-DIP Module | Active High Enable | Through Hole | 137.5 V | 4.2 A | 24 V | 88 % | 97 °C | -40 °C | |
Recom Power | 16.8 V | ITE (Commercial) Railway | 1 | 100 W | OCP OTP OVP Remote On/Off UVLO | 4.2 kV | Isolated Module | 10-DIP Module | Active High Enable | Through Hole | 137.5 V | 8.5 A | 12 V | 90 % | 97 °C | -40 °C |
