VX-011 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

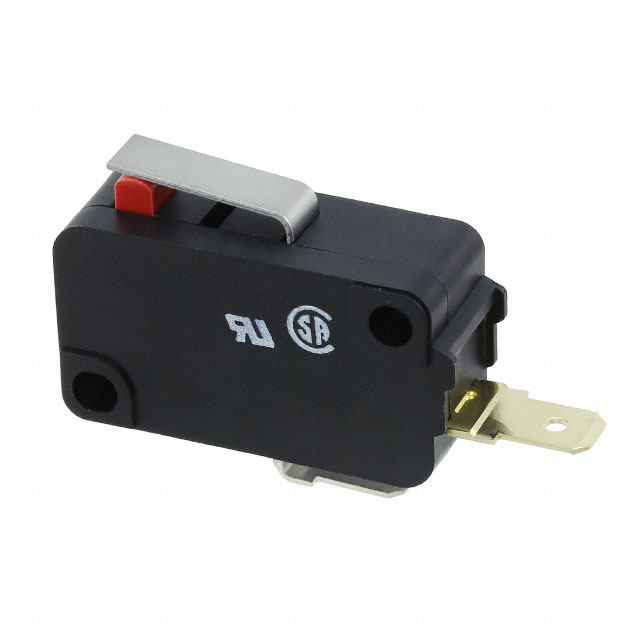

SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Operating Force | Voltage Rating - AC | Current Rating (Amps) | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Mounting Type | Pretravel | Pretravel | Circuit | Voltage Rating - DC | Differential Travel | Differential Travel | Switch Function | Release Force | Mechanical Life | Actuator Type | Operating Position | Operating Position | Termination Style | Overtravel [custom] | Overtravel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 50 gf | 125 V | 100 mA | 1000000 Cycles | -25 °C | 80 °C | IP40 | Chassis Mount | 0.063 in | 1.6 mm | SPDT | 30 V | 0.5 mm | 0.02 in | On-Mom | 4.079 gf | 10000000 Cycles | Lever Straight | 0.6 in | 15.2 mm | Quick Connect | 0.03 " | 0.76 mm |
 Omron Electronics Inc-EMC Div | 50 gf | 125 V | 100 mA | 1000000 Cycles | -25 °C | 80 °C | IP40 | Chassis Mount | 0.063 in | 1.6 mm | SPST-NO | 30 V | 0.5 mm | 0.02 in | Off-Mom | 4.079 gf | 10000000 Cycles | Lever Straight | 0.6 in | 15.2 mm | Quick Connect | 0.03 " | 0.76 mm |
