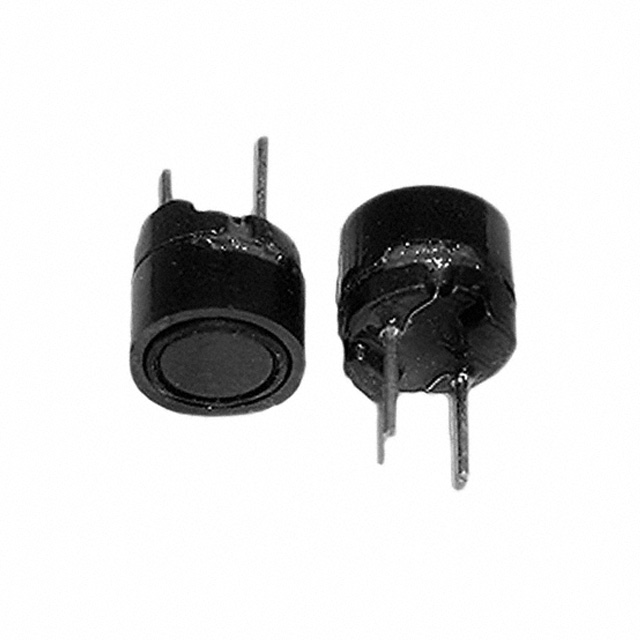

AISR-01 Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - LEADED IND 56000.00 UH 0.012 A 58000.00 MOHM
| Part | Inductance | Frequency - Self Resonant | Mounting Type | Package / Case | Material - Core | Tolerance | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | DC Resistance (DCR) [Max] | Q @ Freq [custom] | Q @ Freq [custom] | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 56 mH | 120 kHz | Through Hole | Radial Vertical Cylinder | Ferrite | 5 % | 12 mA | 85 °C | -25 °C | Shielded | 58 Ohm | 50 kHz | 100 | 0.425 " | 10.8 mm | 14 mm | 0.551 in | 1 kHz | Drum Core Wirewound |
 Abracon LLC | 39 mH | 120 kHz | Through Hole | Radial Vertical Cylinder | Ferrite | 5 % | 0.015 A | 85 °C | -25 °C | Shielded | 45 Ohm | 50 kHz | 100 | 0.425 " | 10.8 mm | 14 mm | 0.551 in | 1 kHz | Drum Core Wirewound |
