1505 Series

Catalog

CONN BARRIER STRIP 5CIRC 0.375"

Part	Mounting Type	Material Flammability Rating	Operating Temperature	Terminal Screw Finish	Material - Insulation	Pitch	Pitch	Barrier Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows [custom]	Number of Circuits	Features	Top Termination	Terminal Block Type	Number of Wire Entries	Current Rating (Amps)	Bottom Termination	Terminal Screw Material
Curtis Industries 1505-3/4ST	Chassis Panel	UL94 V-0	110 °C	Tin	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	2 Wall (Dual)	22 AWG	10 AWG	2	5	Flange	Screws with Solder Lugs Single	Barrier Block	10	20 A	Closed

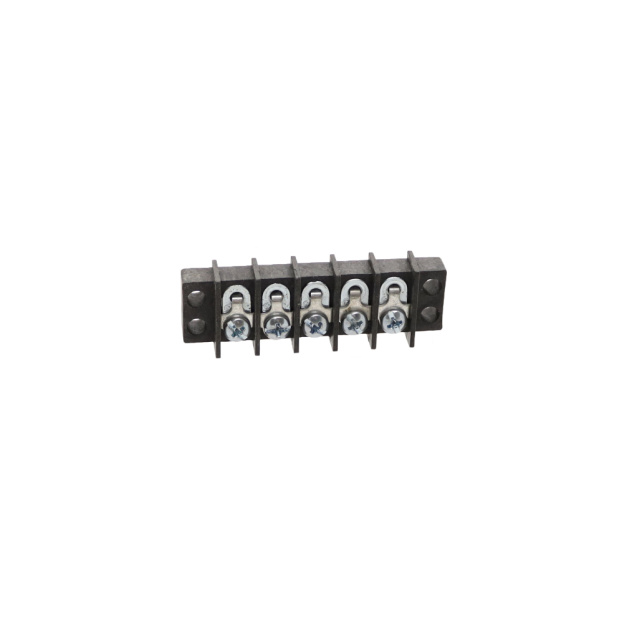

Curtis Industries 1505-Y	Chassis Panel Through Hole	UL94 V-0	110 °C		Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	2 Wall (Dual)	22 AWG	10 AWG	2	5	Flange	Screws	Barrier Block	10	20 A	PC Pin	Steel
Curtis Industries 1505-YSY	Chassis Panel Through Hole	UL94 V-0	110 °C		Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	2 Wall (Dual)	22 AWG	10 AWG	2	5	Flange	Screws	Barrier Block	10	20 A	PC Pin	Steel
Curtis Industries 1505-ST	Chassis Panel	UL94 V-0	110 °C	Tin	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	2 Wall (Dual)	22 AWG	10 AWG	2	5	Flange	Dual Screws with Solder Lugs	Barrier Block	10	20 A	Closed
Curtis Industries 1505W	Chassis Panel	UL94 V-0	110 °C		Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	2 Wall (Dual)	22 AWG	10 AWG	2	5	Flange	Screws with Captive Plate	Barrier Block	10	20 A	Closed	Steel
