0259-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC 0.053DIA GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Mounting Hole Diameter | Mounting Hole Diameter | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Contact Material | Contact Finish | Insulation | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

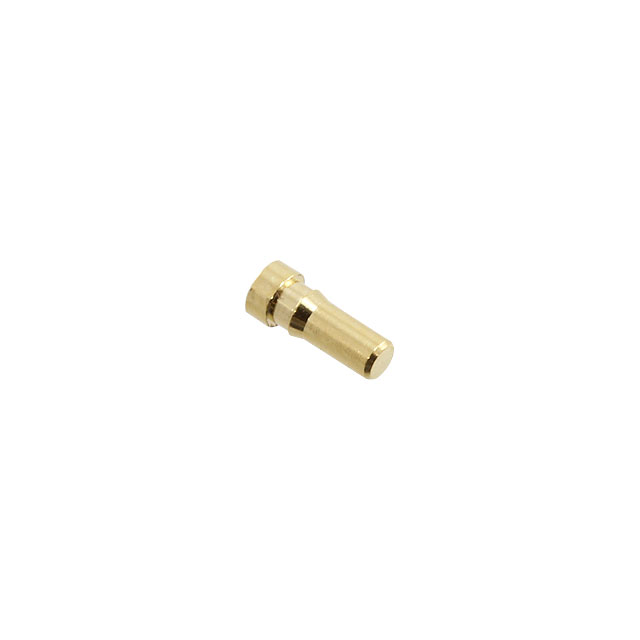

 Mill-Max Manufacturing Corp. | 20 µin | 0.51 µm | 0.053 in | 1.35 mm | Single End | 0.059 in | 1.5 mm | Through Hole | 0.142 in | 3.61 mm | Press-Fit | Brass Alloy | Gold | Non-Insulated | 0.173 in | 4.39 mm | 0.072 " | 1.83 mm | PC Pin |

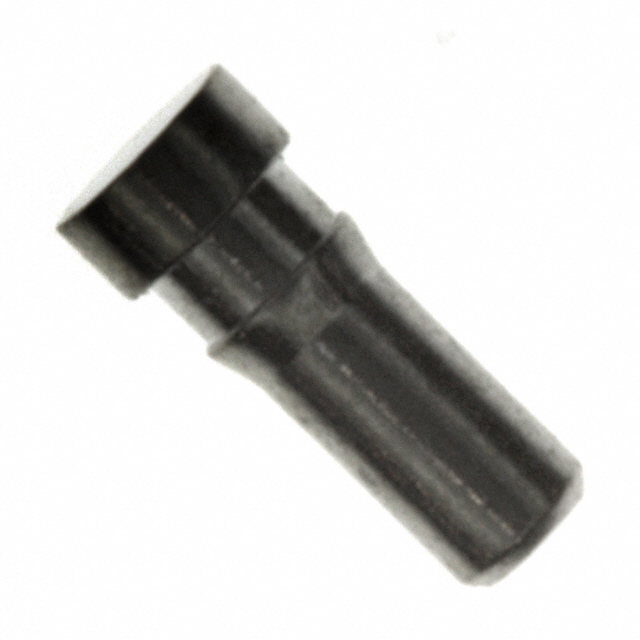

 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 0.053 in | 1.35 mm | Single End | 0.059 in | 1.5 mm | Through Hole | 0.142 in | 3.61 mm | Press-Fit | Brass Alloy | Tin-Lead | Non-Insulated | 0.173 in | 4.39 mm | 0.072 " | 1.83 mm | PC Pin |
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | 0.053 in | 1.35 mm | Single End | 0.059 in | 1.5 mm | Through Hole | 0.142 in | 3.61 mm | Press-Fit | Brass Alloy | Gold | Non-Insulated | 0.173 in | 4.39 mm | 0.072 " | 1.83 mm | PC Pin |
