737-038 Series
Manufacturer: EDAC Inc.
Beta
⌘K

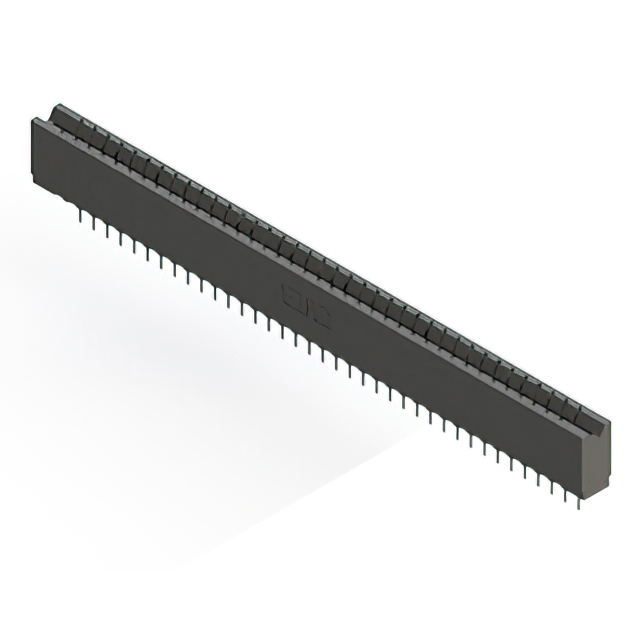

CONN EDGE SGL FMALE 38POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Type | Number of Positions | Color | Card Thickness [Max] | Card Thickness [Min] | Termination | Mounting Type | Card Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Finish | Pitch | Pitch | Number of Rows | Contact Material | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Positions/Bay/Row | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | 38 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Through Hole | Non Specified - Single Edge | Female | -40 C | 105 ░C | Single | Gold | 3.96 mm | 0.156 in | 1 | Copper Alloy | 38 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | 38 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Through Hole | Non Specified - Single Edge | Female | -40 C | 105 ░C | Single | Gold | 3.96 mm | 0.156 in | 1 | Copper Alloy | 38 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 38 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Non Specified - Dual Edge | Female | -40 C | 105 ░C | Dual | Gold | 3.96 mm | 0.156 in | Copper Alloy | 30 Áin | 0.76 Ám | 2 | 19 | 2 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | 38 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Non Specified - Single Edge | Female | -40 C | 105 ░C | Single | Gold | 3.96 mm | 0.156 in | 1 | Copper Alloy | 38 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | 38 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Non Specified - Single Edge | Female | -40 C | 105 ░C | Single | Gold | 3.96 mm | 0.156 in | 1 | Copper Alloy | 38 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 38 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Non Specified - Dual Edge | Female | -40 C | 105 ░C | Dual | Gold | 3.96 mm | 0.156 in | Copper Alloy | 30 Áin | 0.76 Ám | 2 | 19 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 38 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Non Specified - Dual Edge | Female | -40 C | 105 ░C | Dual | Gold | 3.96 mm | 0.156 in | Copper Alloy | 30 Áin | 0.76 Ám | 2 | 19 | 2 |
