725-053 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 53POS 0.100

Part	Termination Rows	Material - Insulation	Gender	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Material	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Card Type	Read Out	Number of Rows	Number of Positions/Bay/Row	Mounting Type	Termination	Number of Positions	Contact Finish	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]
EDAC Inc. 725-053-540-101	1	Polyester Thermoplastic	Female	30 Áin	0.76 Ám	Black	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	1	53	Through Hole	Press-Fit Wire Wrap	53	Gold	Cantilever	-40 C	105 ░C

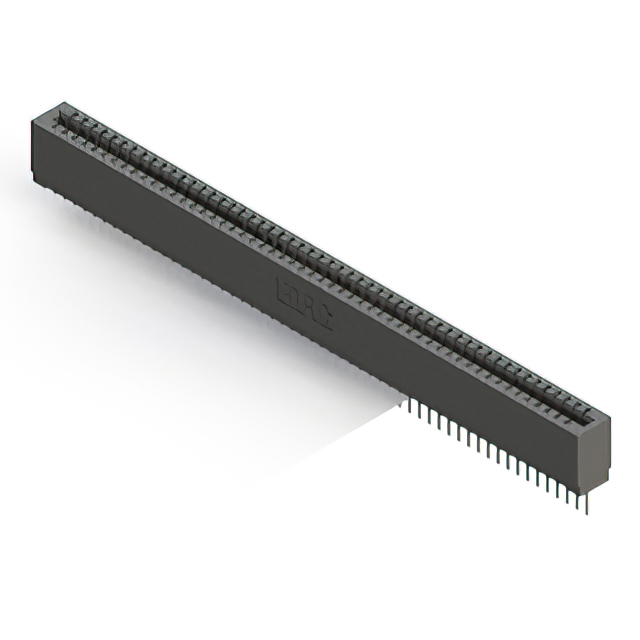

EDAC Inc. 725-053-522-101	1	Polyester Thermoplastic	Female	30 Áin	0.76 Ám	Black	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	1	53	Through Hole	Press-Fit	53	Gold	Cantilever	-40 C	105 ░C
EDAC Inc. 725-053-545-101	1	Polyester Thermoplastic	Female	30 Áin	0.76 Ám	Black	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	1	53	Through Hole	Press-Fit Wire Wrap	53	Gold	Cantilever	-40 C	105 ░C
EDAC Inc. 725-053-541-101	1	Polyester Thermoplastic	Female	30 Áin	0.76 Ám	Black	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	1	53	Through Hole	Press-Fit Wire Wrap	53	Gold	Cantilever	-40 C	105 ░C
