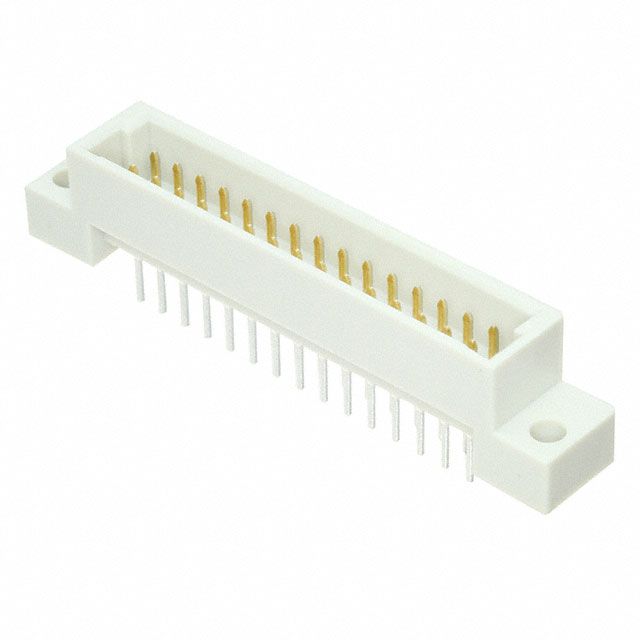

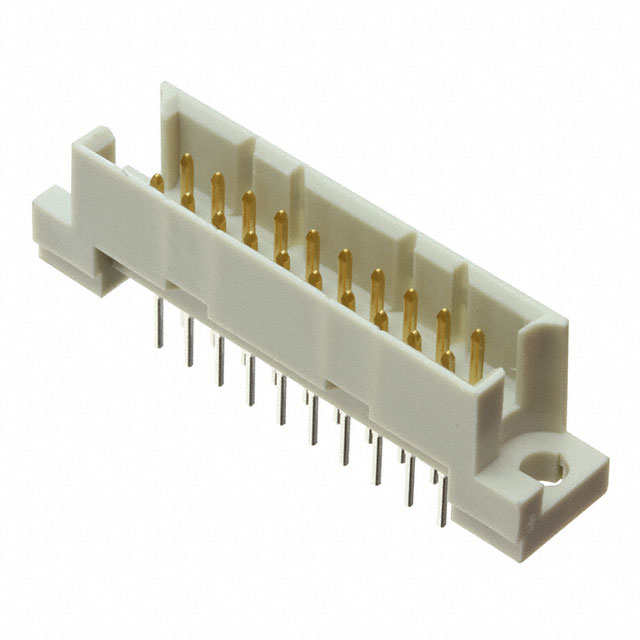

XC5E Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONN DIN PLUG 44POS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material - Insulation	Material Flammability Rating	Number of Positions	Connector Type	Number of Rows [custom]	Style	Pitch	Pitch	Number of Positions Loaded	Termination	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded
Omron Electronics Inc-EMC Div XC5E-4481-2A	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	44	Plug Male Pins	2	Q	0.1 "	2.54 mm	44
Omron Electronics Inc-EMC Div XC5E-3281-2A	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0		Plug Male Pins	2	Q	0.1 "	2.54 mm	32
Omron Electronics Inc-EMC Div XC5E-3241	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0		Plug Male Pins	2	Q	0.1 "	2.54 mm	32
Omron Electronics Inc-EMC Div XC5E4421ABYOMR	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	44	Plug Male Pins	2	Q	0.1 "	2.54 mm	44	Solder	Through Hole
Omron Electronics Inc-EMC Div XC5E-2081-2A	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	20	Plug Male Pins	2	Q	0.1 "	2.54 mm	20
Omron Electronics Inc-EMC Div XC5E-2081-2	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	20	Plug Male Pins	2	Q	0.1 "	2.54 mm	20	Solder	Through Hole	Gold	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5E-3081-2	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	30	Plug Male Pins	2	Q	0.1 "	2.54 mm	30	Solder	Through Hole	Gold	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5E-4481-2	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	44	Plug Male Pins	2	Q	0.1 "	2.54 mm	44
Omron Electronics Inc-EMC Div XC5E-3223	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0		Plug Male Pins	2	Q	0.1 "	2.54 mm		Wire Wrap	Through Hole	Gold	16 µin	0.41 µm	All
Omron Electronics Inc-EMC Div XC5E-4423	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	44	Plug Male Pins	2	Q	0.1 "	2.54 mm		Wire Wrap	Through Hole	Gold	16 µin	0.41 µm	All
