RUMC21 Series

Catalog

RELAY 2CO CYL PINS 10A@250V 120V

Part	Coil Resistance	Features	Contact Rating (Current)	Termination Style	Coil Current	Release Time	Approval Agency	Relay Type	Load - Max Switching	Coil Type	Operate Time	Contact Form	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switching Voltage [Max]	Must Release Voltage	Coil Voltage	Must Operate Voltage

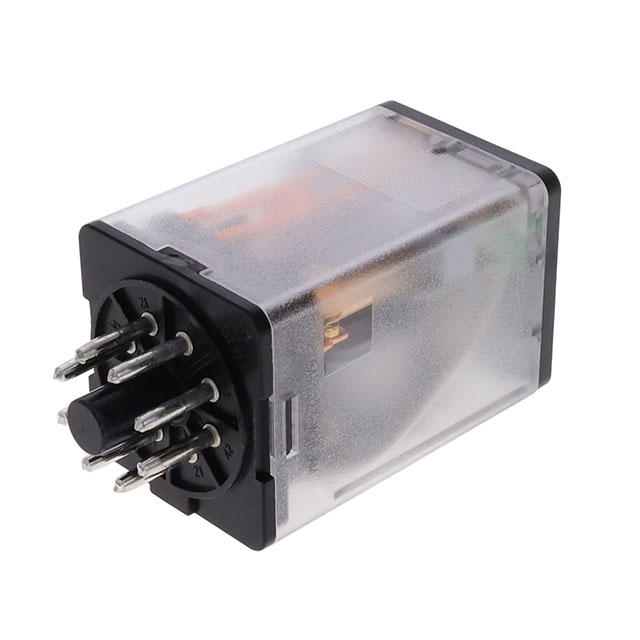

SCHNEIDER ELECTRIC RUMC21F7	1.7 kOhms	Test Button	10 A	Plug In	70.6 mA	20 ms	CSA EAC UL	General Purpose	280 W 2500 VA	Non Latching	20 ms	DPDT (2 Form C)	Silver Nickel (AgNi)	55 °C	-40 C	Chassis Mount	28 VDC 250 VAC	18 VAC	120 VAC	96 VAC
SCHNEIDER ELECTRIC RUMC21P7	6.8 kOhms	Lighted Indicator	10 A	Plug In	33.8 mA	20 ms	CSA EAC UL	General Purpose	280 W 2500 VA	Non Latching	20 ms	DPDT (2 Form C)	Silver Nickel (AgNi)	55 °C	-40 C	Socketable	28 VDC 250 VAC	34.5 VAC	230 VAC	184 VAC
SCHNEIDER ELECTRIC RUMC21FD	7.3 kOhms	Test Button	10 A	Plug In	15.1 mA	20 ms	CSA EAC UL	General Purpose	280 W 2500 VA	Non Latching	20 ms	DPDT (2 Form C)	Silver Nickel (AgNi)	55 °C	-40 C	Socketable	28 VDC 250 VAC	11 VDC	110 VDC	88 VDC

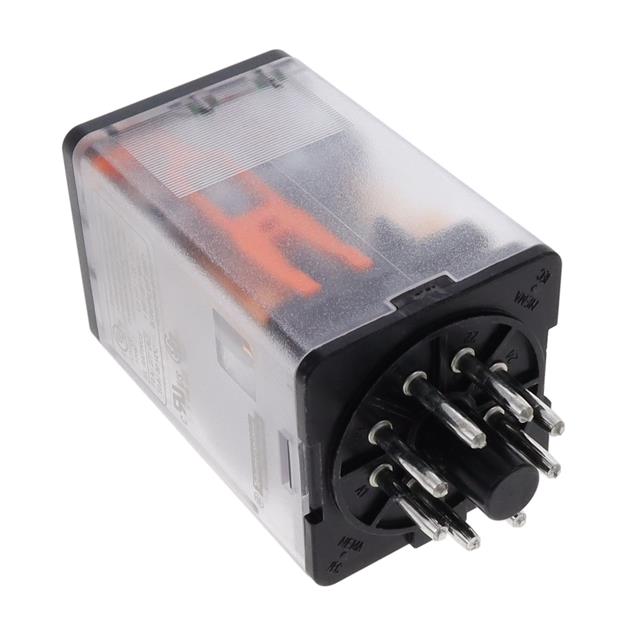

SCHNEIDER ELECTRIC RUMC21B7	72 Ohms	Test Button	10 A	Plug In	333.3 mA	20 ms	CSA EAC UL	General Purpose	280 W 2500 VA	Non Latching	20 ms	DPDT (2 Form C)	Silver Nickel (AgNi)	55 °C	-40 C	Socketable	28 VDC 250 VAC	3.6 VAC	24 VAC	19.2 VAC
SCHNEIDER ELECTRIC RUMC21JD	120 Ohms	Test Button	10 A	Plug In	0.1 A	20 ms	CSA EAC UL	General Purpose	280 W 2500 VA	Non Latching	20 ms	DPDT (2 Form C)	Silver Nickel (AgNi)	55 °C	-40 C	Socketable	28 VDC 250 VAC	1.2 VDC	12 VDC	9.6 VDC
SCHNEIDER ELECTRIC RUMC21BD	470 Ohms	Test Button	10 A	Plug In	51.1 mA	20 ms	CSA EAC UL	General Purpose	280 W 2500 VA	Non Latching	20 ms	DPDT (2 Form C)	Silver Nickel (AgNi)	55 °C	-40 C	Socketable	28 VDC 250 VAC	2.4 VDC	24 VDC	19.2 VDC
