C14D16P Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

OPTICAL ENCODER ROTARY INCREMENTAL FLAT 0.006N.M STRAIGHT DIGITAL SQUARE WAVE PANEL MOUNT HEADER 4CPR

Part	Rotational Life (Cycles Min) [Min]	Mounting Type	Orientation	Output Type	Encoder Type	Termination Style	Actuator Type [diameter]	Actuator Type	Pulses per Revolution	Actuator Type [diameter]	Voltage - Supply [Min]	Voltage - Supply [Max]
Same Sky (Formerly CUI Devices) C14D16P-C3	1M	Panel PCB Through Hole	Vertical	Quadrature (Incremental)	Optical	PC Pin	0.25 in	Flatted End	16
Same Sky (Formerly CUI Devices) C14D16P-D1	1M	Panel PCB Through Hole	Right Angle	Quadrature (Incremental)	Optical	PC Pin		Flatted End	16	1/8	4.75 V	5.25 V

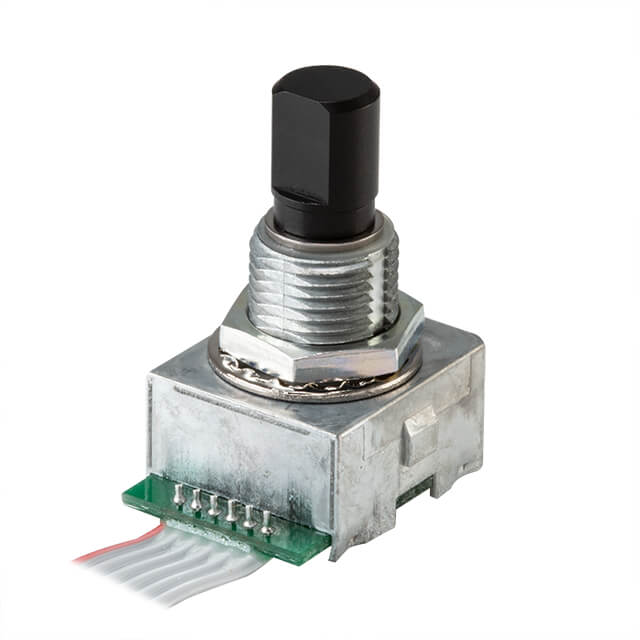

Same Sky (Formerly CUI Devices) C14D16P-B3PA	1M	Panel Mount	Right Angle	Quadrature (Incremental)	Optical	Cable with Connector	0.25 in	Flatted End	16		4.75 V	5.25 V
Same Sky (Formerly CUI Devices) C14D16P-A2	1M	Panel Mount	Right Angle	Quadrature (Incremental)	Optical	Solder Lug	6 mm	Round End	16
Same Sky (Formerly CUI Devices) C14D16P-B3A3	1M	Panel Mount	Right Angle	Quadrature (Incremental)	Optical	Cable with Connector	0.25 in	Flatted End	16		3.168 V	3.432 V
Same Sky (Formerly CUI Devices) C14D16P-C3	1M	Panel PCB Through Hole	Vertical	Quadrature (Incremental)	Optical	PC Pin	0.25 in	Flatted End	16

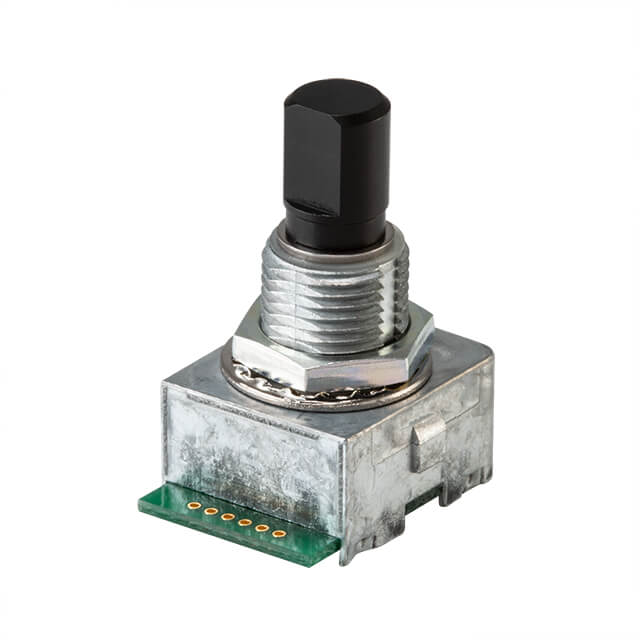

Same Sky (Formerly CUI Devices) C14D16P-A2PA	1M	Panel Mount	Right Angle	Quadrature (Incremental)	Optical	Solder Lug	6 mm	Round End	16		4.75 V	5.25 V
Same Sky (Formerly CUI Devices) C14D16P-D1	1M	Panel PCB Through Hole	Right Angle	Quadrature (Incremental)	Optical	PC Pin		Flatted End	16	1/8	4.75 V	5.25 V
Same Sky (Formerly CUI Devices) C14D16P-B3PA	1M	Panel Mount	Right Angle	Quadrature (Incremental)	Optical	Cable with Connector	0.25 in	Flatted End	16		4.75 V	5.25 V
Same Sky (Formerly CUI Devices) C14D16P-A2P	1M	Panel Mount	Right Angle	Quadrature (Incremental)	Optical	Solder Lug	6 mm	Round End	16		4.75 V	5.25 V
