ITS5215 Series
Manufacturer: INFINEON
Beta
⌘K
HIGH SIDE POWER SWITCH WITH INTEGRATED VERTICAL POWER FET, PROVIDING EMBEDDED PROTECTION AND DIAGNOSTIC FUNCTIONS.
| Part | Package / Case | Interface | Rds On (Typ) | Supplier Device Package | Ratio - Input:Output | Fault Protection | Number of Outputs | Features | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Output Configuration | Voltage - Load [Max] | Voltage - Load [Min] | Input Type | Switch Type | Voltage - Supply (Vcc/Vdd) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

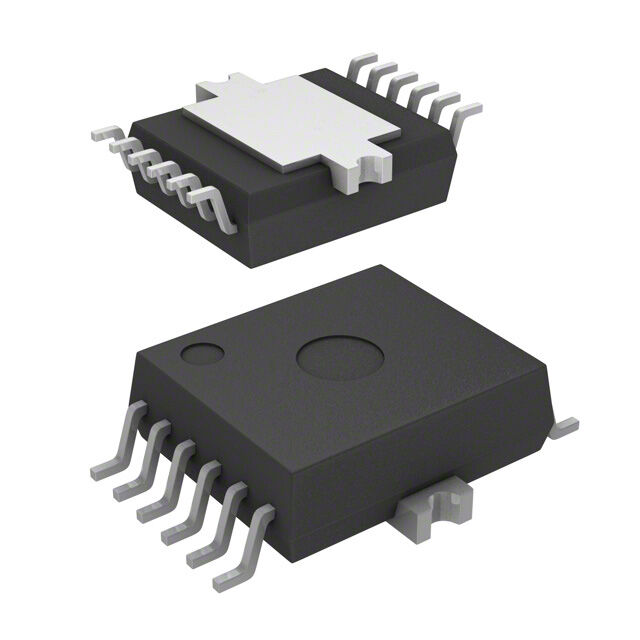

 INFINEON | 12-BSOP (0.295" 7.50mm Width) Exposed Pad | On/Off | 70 mOhm | PG-DSO-12-9 | 1:1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 2 | Status Flag | 3.7 A | 85 °C | -30 °C | N-Channel | High Side | 40 V | 5.5 V | Non-Inverting | General Purpose | Not Required | Surface Mount |
