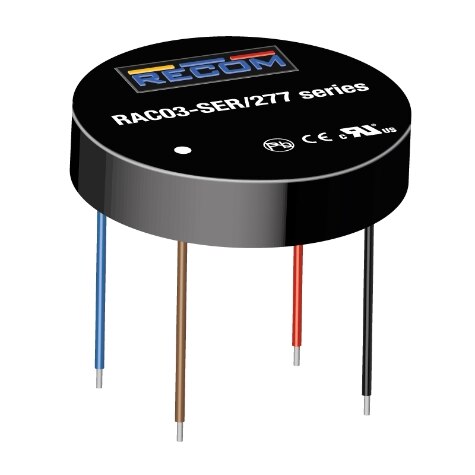

RAC03-SER/277 Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC POWER MODULES 3W 85-305VIN 24VOUT 125MA ROUND/ WIRE
| Part | Minimum Load Required | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Power (Watts) | Current - Output 1 | Type | Mounting Type | Voltage - Output 1 | Features | Applications | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 76 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 125 mA | Enclosed | Chassis Mount | 24 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus | |
 Recom Power | 70 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 600 mA | Enclosed | Chassis Mount | 5 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus | |
 Recom Power | 74 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 250 mA | Enclosed | Chassis Mount | 12 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus | |
Recom Power | 68 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 900 mA | Enclosed | Chassis Mount | 3.3 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus | |
 Recom Power | 68 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 900 mA | Enclosed | Chassis Mount | 3.3 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus | |
Recom Power | 74 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 250 mA | Enclosed | Chassis Mount | 12 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus | |
Recom Power | 70 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 600 mA | Enclosed | Chassis Mount | 5 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus | |
Recom Power | 76 % | 50.3 mm | 1.98 " | 0.43 in | 50.3 mm | 1.98 " | 11 mm | 305 VAC | 85 VAC | 3000 V | 3 W | 125 mA | Enclosed | Chassis Mount | 24 V | DC Input Capable Universal Input | Household Appliances ITE (Commercial) | 1 | -40 °C | 85 °C | CE cURus |
