3417 Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 40 CONTACTS, CABLE MOUNT

Part	Row Spacing	Row Spacing	Number of Rows [custom]	Number of Positions	Wire Type	Connector Type	Mounting Type	Contact Type	Contact Finish	Pitch	Pitch	Cable Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]

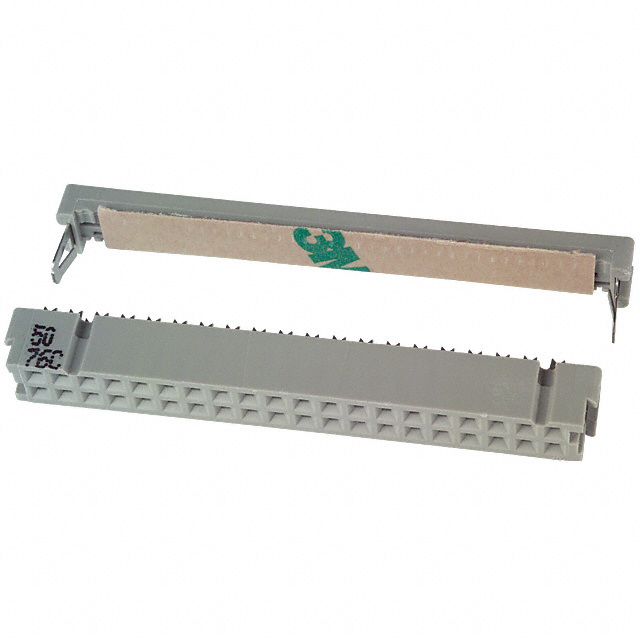

3M Electronic Specialty 3417-6000	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Feed Through

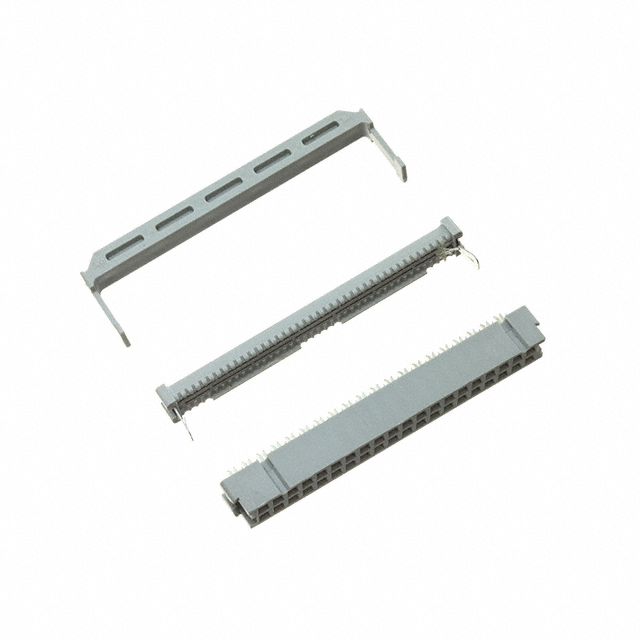

3M Electronic Specialty 3417-7040	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Closed End Strain Relief
3M Electronic Specialty 3417-G600	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Feed Through Polarizing Key	28 AWG	Stranded or Solid	26 AWG
3M Electronic Specialty 3417-7000	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Closed End
3M Electronic Specialty 3417-H600	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Feed Through Polarizing Key	28 AWG	Stranded or Solid	26 AWG
3M Electronic Specialty 3417-6040	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Feed Through Strain Relief

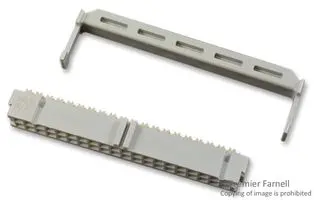

3M Electronic Specialty 3417-6640	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Feed Through Polarizing Key Strain Relief
3M Electronic Specialty 3417-G000	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Feed Through	28 AWG	Stranded or Solid	26 AWG
3M Electronic Specialty 3417-6600	2.54 mm	0.1 "	2	40	Ribbon Cable	Receptacle	Free Hanging (In-Line)	Female Socket	Gold	0.1 "	2.54 mm	IDC	Gray	30 Áin	0.76 Ám	Feed Through Polarizing Key	28 AWG	Stranded or Solid	26 AWG
