DTM65PW190 Series

Catalog

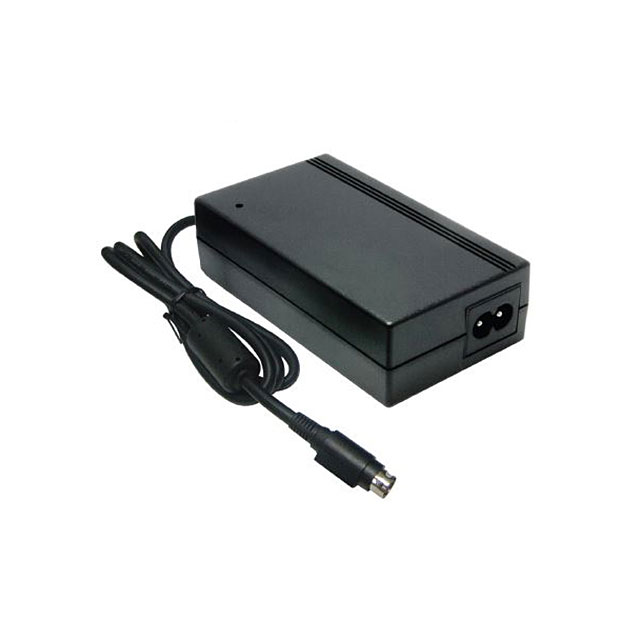

AC/DC DESKTOP ADAPTER 19V 65W

Part	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Input Connector	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	No Load Power Consumption	Applications	Voltage - Output	Form	Output Connector	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency
TDK Corporation DTM65PW190D	0.86 lb	390.09 g	-20 ░C	60 °C	1.5 m	59 in	IEC 320-C14	Level VI	132 mm	1.57 "	40 mm	5.2 in	2.71 "	69 mm	3.42 A	Cord (Sold Separately)	264 VAC	90 VAC	65 W	150 mW	Medical	19 V	Desktop (Class I)	Power DIN 4 Pin	International
TDK Corporation DTM65PW190C8	1 lbs	453.59 g	0 °C	60 °C	1.05 m	41.34 in	IEC 320-C8	Level VI	106 mm		31 mm			60 mm	3.42 A	Cord (Sold Separately)	264 VAC	90 VAC	65 W	210 mW	Medical	19 V	Desktop (Class II)	Power DIN 4 Pin	International	1.22 in	4.17 in	2.36 in	CE
