S13B-PH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 13POS 2MM
| Part | Insulation Material | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Shrouding | Material Flammability Rating | Voltage Rating | Number of Positions | Insulation Color | Connector Type | Contact Shape | Mounting Type | Termination | Contact Material | Contact Type | Fastening Type | Style | Contact Length - Post [x] | Contact Length - Post | Contact Finish - Post | Insulation Height | Insulation Height | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

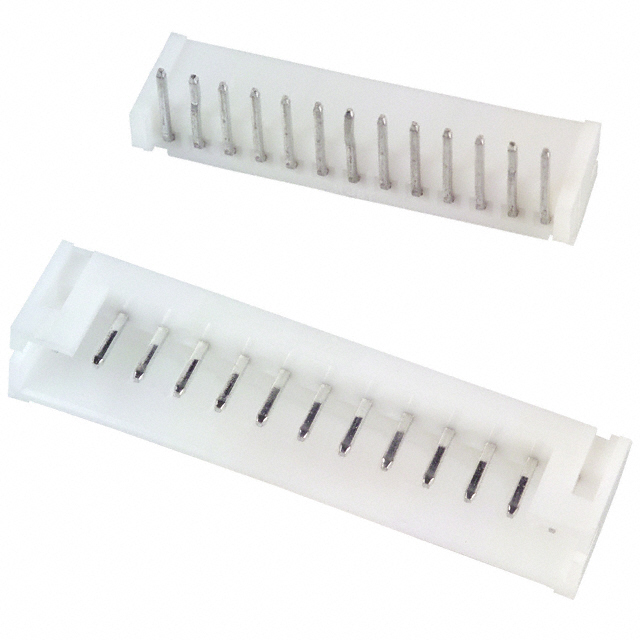

 JST Sales America Inc. | Nylon 6/6 Polyamide (PA66) | All | 85 °C | -25 °C | 1 | 0.13 in | 3.3 mm | 2 A | 0.079 " | 2 mm | Shrouded - 4 Wall | UL94 V-0 | 100 V | 13 | Natural | Header | Square | Right Angle Through Hole | Press-Fit Solder | Brass | Male Pin | Detent Lock | Board to Cable/Wire | 0.134 " | 3.4 mm | Tin | 4.8 mm | 0.189 in | |

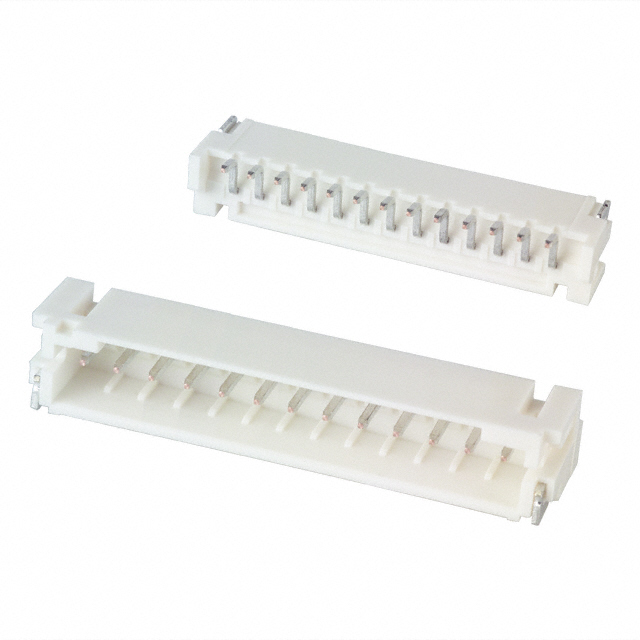

 JST Sales America Inc. | Nylon 6T Polyamide (PA6T) | All | 85 °C | -25 °C | 1 | 0.13 in | 3.3 mm | 2 A | 0.079 " | 2 mm | Shrouded - 4 Wall | UL94 V-0 | 100 V | 13 | Natural | Header | Square | Right Angle Surface Mount | Solder | Copper Alloy | Male Pin | Detent Lock | Board to Cable/Wire | Tin | 5.51 mm | 0.217 in | Solder Retention |
