09302100 Series
Manufacturer: HARTING
Beta
⌘K

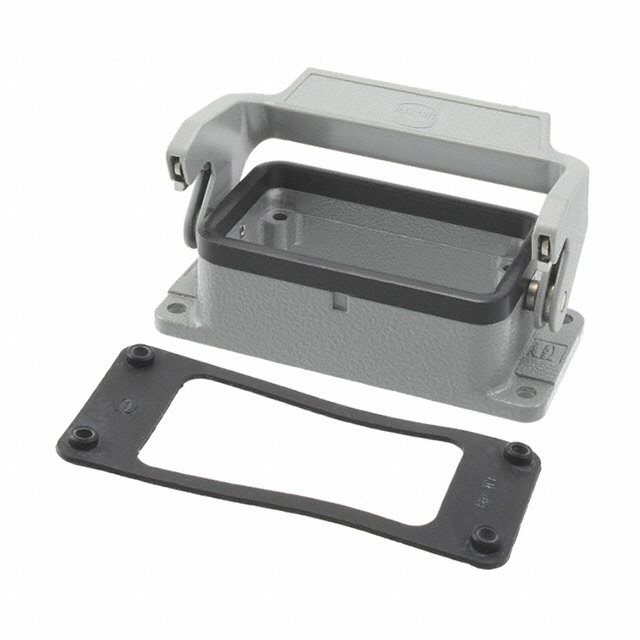

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 10B, HAN 10B HOODS & INSERTS
| Part | Housing Finish | Connector Type | Ingress Protection | Housing Material | Lock Location | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Style | Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Powder Coated | Base - Panel Mount | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Locking Clip (1) on Base Bottom | 28.9 mm | 43.4 mm | 1.138 " | 93 mm | 3.661 " | 1.709 " | Bottom Entry | 10B | 125 °C | -40 C | Gray |
