SRCN2A13 Series

Catalog

CONN RCPT FMALE 3 POS

Part	Applications	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shell Size - Insert	Orientation	Shell Finish	Material Flammability Rating	Contact Material	Connector Type	Shell Material	Insert Material	Voltage Rating	Color	Mounting Type	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Mounting Feature	Orientation [x]
JAE Electronics SRCN2A13-3S-A534	Communication Systems Measurement Telecommunications Test Equipment	Threaded	85 °C	-25 °C	Metal	13-3	N (Normal)	Nickel	UL94 V-0	Copper Alloy	Receptacle Female Sockets	Aluminum Alloy

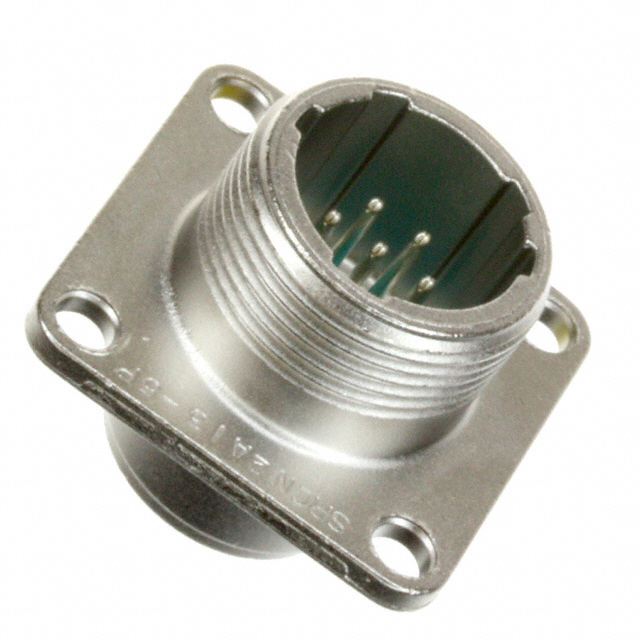

JAE Electronics SRCN2A13-5P	Communication Systems Measurement Telecommunications Test Equipment	Threaded	85 °C	-25 °C	Metal	13-5	N (Normal)	Nickel	UL94 V-0	Copper Alloy	Receptacle Male Pins	Aluminum Alloy	Plastic	250 VAC 350 VDC	Silver	Panel Mount	5	5 A	Silver	Flange

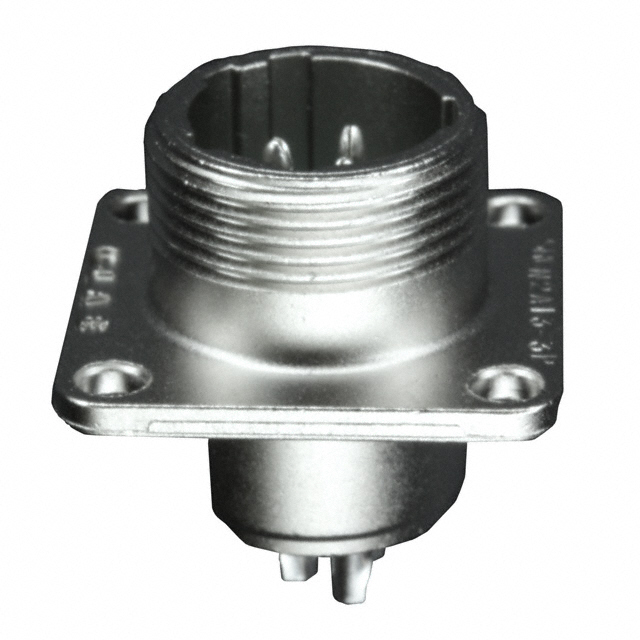

JAE Electronics SRCN2A13-3P	Communication Systems Measurement Telecommunications Test Equipment	Threaded	85 °C	-25 °C	Metal	13-3	N (Normal)	Nickel	UL94 V-0	Copper Alloy	Receptacle Male Pins	Aluminum Alloy	Plastic	250 VAC 350 VDC	Silver	Panel Mount		10 A	Silver	Flange
JAE Electronics SRCN2A13-5PX	Communication Systems Measurement Telecommunications Test Equipment	Threaded	85 °C	-25 °C	Metal	13-5		Nickel	UL94 V-0	Copper Alloy	Receptacle Male Pins	Aluminum Alloy	Plastic	250 VAC 350 VDC	Silver	Panel Mount	5	5 A	Silver	Flange	X
JAE Electronics SRCN2A13-5S	Communication Systems Measurement Telecommunications Test Equipment	Threaded	85 °C	-25 °C	Metal	13-5	N (Normal)	Nickel	UL94 V-0	Copper Alloy	Receptacle Female Sockets	Aluminum Alloy	Plastic	250 VAC 350 VDC	Silver	Panel Mount	5	5 A	Silver	Flange

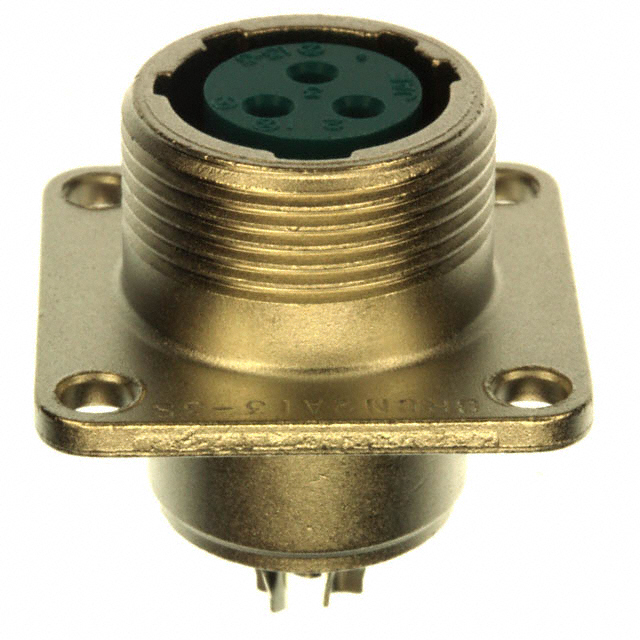

JAE Electronics SRCN2A13-3S	Communication Systems Measurement Telecommunications Test Equipment	Threaded	85 °C	-25 °C	Metal	13-3	N (Normal)	Nickel	UL94 V-0	Copper Alloy	Receptacle Female Sockets	Aluminum Alloy	Plastic	250 VAC 350 VDC	Silver	Panel Mount		10 A	Silver	Flange
