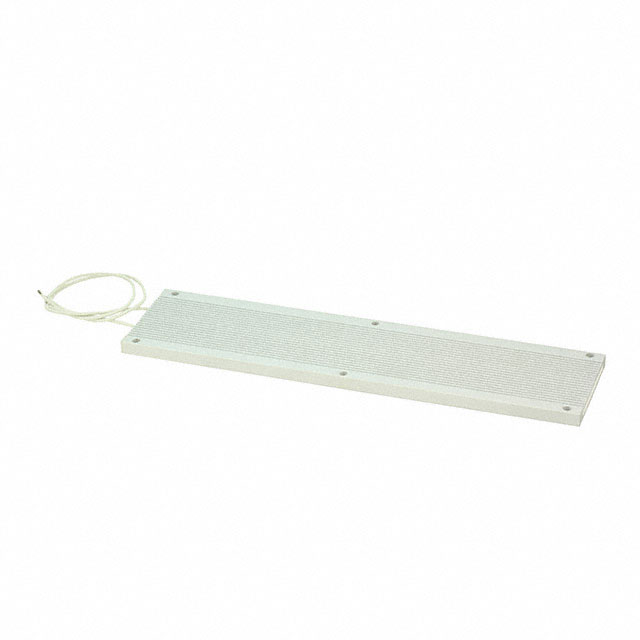

TJT500 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RESISTOR, 1.5 KOHM, TJT SERIES, 500 W, ± 5%, WIRE LEADED
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lead Style | Resistance | Mounting Feature | Power (Watts) | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Temperature Coefficient | Composition | Coating, Housing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10 mm | 0.394 in | Wire Leads | 1500 Ohms | Screw Holes | 500 W | 5 % | 330 mm | 3.15 in | 12.99 in | 80 mm | 250 °C | -25 °C | Rectangular Case | 260 ppm/°C | Wirewound | Aluminum |
