FF600R07 Series
Manufacturer: INFINEON
Beta
⌘K

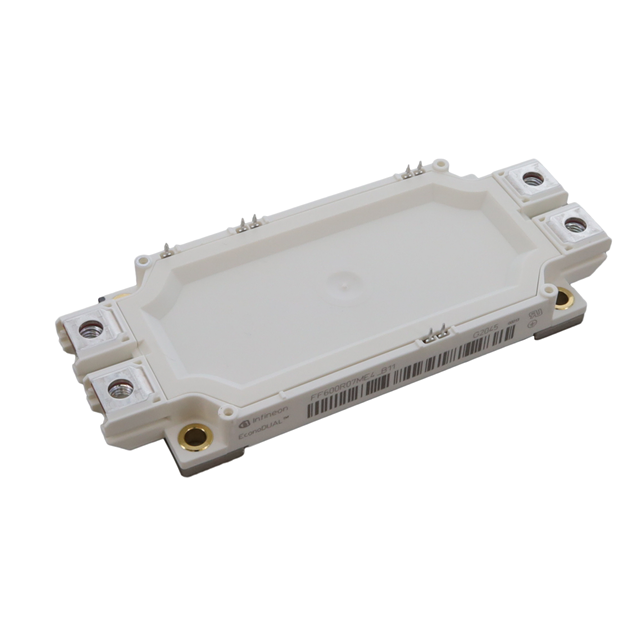

THE FF600R07ME4_B11 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 600 A.
| Part | Voltage - Collector Emitter Breakdown (Max) [Max] | Vce(on) (Max) @ Vge, Ic | Supplier Device Package | Configuration | Package / Case | Current - Collector Cutoff (Max) [Max] | NTC Thermistor | Current - Collector (Ic) (Max) [Max] | IGBT Type | Mounting Type | Input | Operating Temperature [Min] | Operating Temperature [Max] | Input Capacitance (Cies) @ Vce | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 650 V | 1.95 V | AG-ECONOD-3 | 2 Independent | Module | 1 mA | 700 A | Trench Field Stop | Chassis Mount | Standard | -40 °C | 150 °C | 37 nF | 1.8 kW | |
 INFINEON | 650 V | 1.95 V | AG-ECONOD-4 | 2 Independent | Module | 1 mA | 600 A | Trench Field Stop | Chassis Mount | Standard | -40 °C | 150 °C | 37 nF | 20 mW |
