S1S0 Series

Catalog

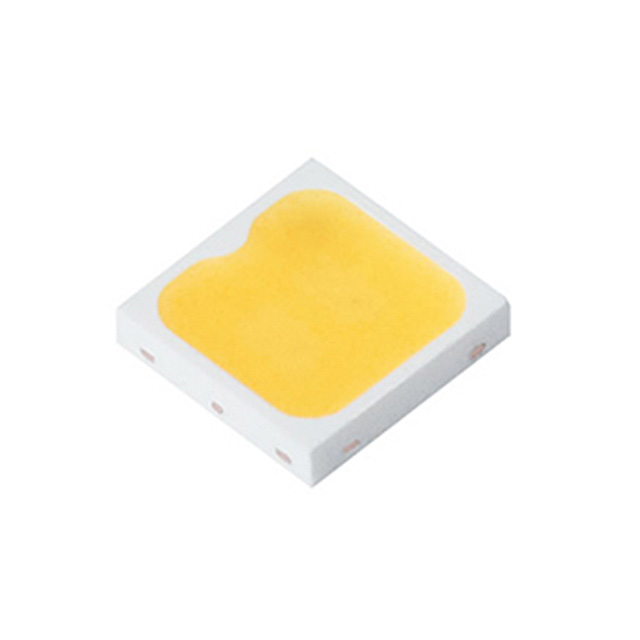

LED SUNLIKE WARM WHT 2700K 3030

Part	Thermal Resistance of Package	Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Package / Case	Package / Case	CCT (K)	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max)	Current - Max [Max]	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Flux @ 25°C, Current - Test	Color
Seoul Semiconductor Inc. S1S0-3030279503-0000003S-00001	10 °C/W	65 mA	108 lm/W	3.05 V	120 °	Surface Mount	3030 Metric	1212	2700 K	3-Step MacAdam Ellipse	0.031 in	0.8 mm	150 mA	95	3 mm	0.118 in	3 mm	0.118 "	3030	21 lm	Warm White
Seoul Semiconductor Inc. S1S0-3030509506-0000003S-00001	10 °C/W	150 mA	107 lm/W	6.4 V	120 °	Surface Mount	3030 Metric	1212	5000 K		0.031 in	0.8 mm	200 mA	95	3 mm	0.118 in	3 mm	0.118 "	3030	101 lm	Cool White
Seoul Semiconductor Inc. S1S0-3030309503-0000003S-00001	10 °C/W	65 mA	111 lm/W	3.05 V	120 °	Surface Mount	3030 Metric	1212	3000 K	3-Step MacAdam Ellipse	0.031 in	0.8 mm	150 mA	95	3 mm	0.118 in	3 mm	0.118 "	3030	22 lm	Warm White
