M80-940 Series

Catalog

WIRE-TO-BOARD CONNECTOR, DUAL IN LINE, DATAMATE J-TEK M80-94 SERIES, CRIMP, RECEPTACLE, 10, 2 MM ROHS COMPLIANT: YES

Part	Pitch [x]	Pitch [x]	Wire Type	Cable Termination	Features	Mounting Type	Connector Type	Number of Rows [custom]	Contact Type	Contact Finish	Row Spacing	Row Spacing	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]

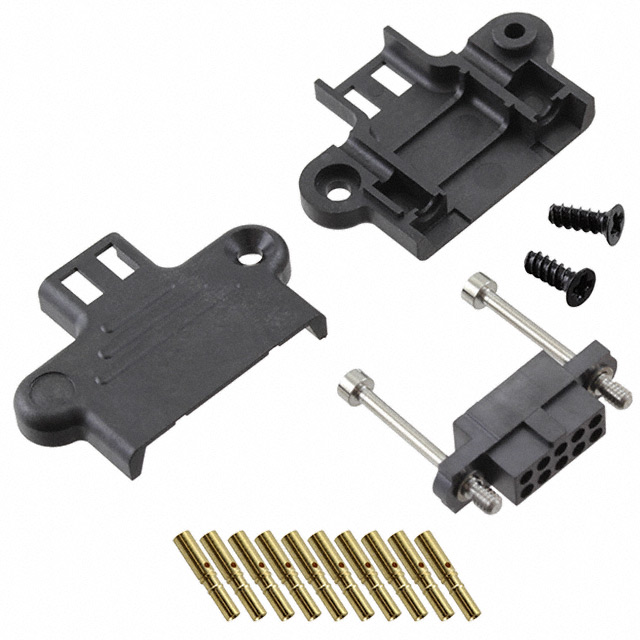

Harwin Inc. M80-9401005	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	10	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9401242	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	12	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9402605	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	26	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9404205	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	42	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9401205	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	12	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9400642	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	6	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9403442	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG		Black	0.3 Ám	11.8 Áin	34

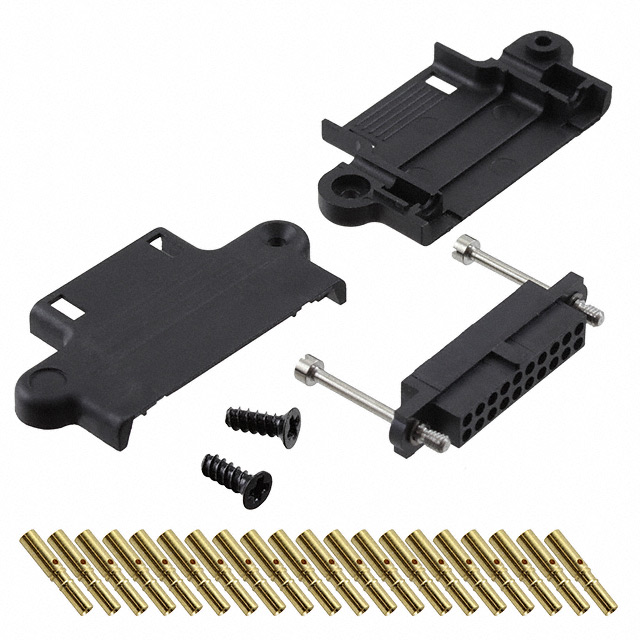

Harwin Inc. M80-9402042	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	20	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9405005	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG	50	Black	0.3 Ám	11.8 Áin
Harwin Inc. M80-9403405	0.079 in	2 mm	Discrete	Crimp	Cable Hood Kit Jackscrews	Free Hanging (In-Line)	Receptacle	2	Female Socket	Gold	2 mm	0.079 in	24 AWG	28 AWG		Black	0.3 Ám	11.8 Áin	34
