52025 Series
Manufacturer: CNC Tech
Beta
⌘K
WIRE-TO BOARD WAFER, 2.5MM, 7 CO
| Part | Current Rating (Amps) | Insulation Material | Mounting Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Insulation Color | Number of Positions | Fastening Type | Contact Type | Shrouding | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Termination | Number of Positions Loaded | Style | Connector Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Voltage Rating | Contact Material | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | 3 A | Nylon 6/6 Polyamide (PA66) | Through Hole | 1 | 85 °C | -40 C | Tin | Beige | 7 | Detent Lock | Male Pin | Shrouded - 4 Wall | 0.138 in | 3.5 mm | 5.9 mm | 0.232 in | Solder | All | Board to Cable/Wire | Header | 2.5 mm | 0.098 in | UL94 V-0 | 250 V | Brass | Circular |
 CNC Tech | 3 A | Nylon 6/6 Polyamide (PA66) | Through Hole | 1 | 85 °C | -40 C | Tin | Beige | 6 | Detent Lock | Male Pin | Shrouded - 4 Wall | 0.138 in | 3.5 mm | 5.9 mm | 0.232 in | Solder | All | Board to Cable/Wire | Header | 2.5 mm | 0.098 in | UL94 V-0 | 250 V | Brass | Circular |
 CNC Tech | 3 A | Nylon 6/6 Polyamide (PA66) | Through Hole | 1 | 85 °C | -40 C | Tin | Beige | Detent Lock | Male Pin | Shrouded - 4 Wall | 0.138 in | 3.5 mm | 5.9 mm | 0.232 in | Solder | All | Board to Cable/Wire | Header | 2.5 mm | 0.098 in | UL94 V-0 | 250 V | Brass | Circular | |
 CNC Tech | 3 A | Nylon 6/6 Polyamide (PA66) | Through Hole | 1 | 85 °C | -40 C | Tin | Beige | 4 | Detent Lock | Male Pin | Shrouded - 4 Wall | 0.138 in | 3.5 mm | 5.9 mm | 0.232 in | Solder | All | Board to Cable/Wire | Header | 2.5 mm | 0.098 in | UL94 V-0 | 250 V | Brass | Circular |
 CNC Tech | 3 A | Nylon 6/6 Polyamide (PA66) | Through Hole | 1 | 85 °C | -40 C | Tin | Beige | 10 | Detent Lock | Male Pin | Shrouded - 4 Wall | 0.138 in | 3.5 mm | 5.9 mm | 0.232 in | Solder | All | Board to Cable/Wire | Header | 2.5 mm | 0.098 in | UL94 V-0 | 250 V | Brass | Circular |

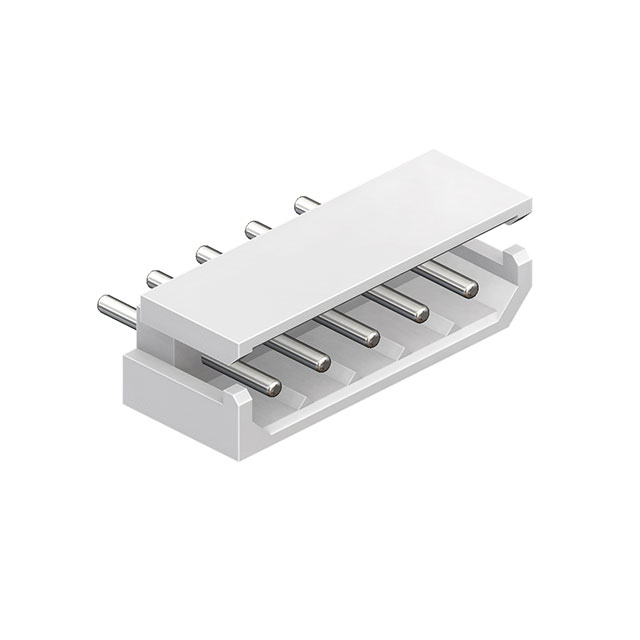

 CNC Tech | 3 A | Nylon 6/6 Polyamide (PA66) | Through Hole | 1 | 85 °C | -40 C | Tin | Beige | 5 | Detent Lock | Male Pin | Shrouded - 4 Wall | 0.138 in | 3.5 mm | 5.9 mm | 0.232 in | Solder | All | Board to Cable/Wire | Header | 2.5 mm | 0.098 in | UL94 V-0 | 250 V | Brass | Circular |
 CNC Tech | 3 A | Nylon 6/6 Polyamide (PA66) | Through Hole | 1 | 85 °C | -40 C | Tin | Beige | 2 | Detent Lock | Male Pin | Shrouded - 4 Wall | 0.138 in | 3.5 mm | 5.9 mm | 0.232 in | Solder | All | Board to Cable/Wire | Header | 2.5 mm | 0.098 in | UL94 V-0 | 250 V | Brass | Circular |
