PWC-3.3 Series
Manufacturer: Astrodyne TDI
Beta
⌘K
AC/DC CONVERTER 3.3V 4W
| Part | Load Regulation | Line Regulation | Standard Number | Type | Package / Case | Applications | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Mounting Type | Current - Output (Max) [Max] | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

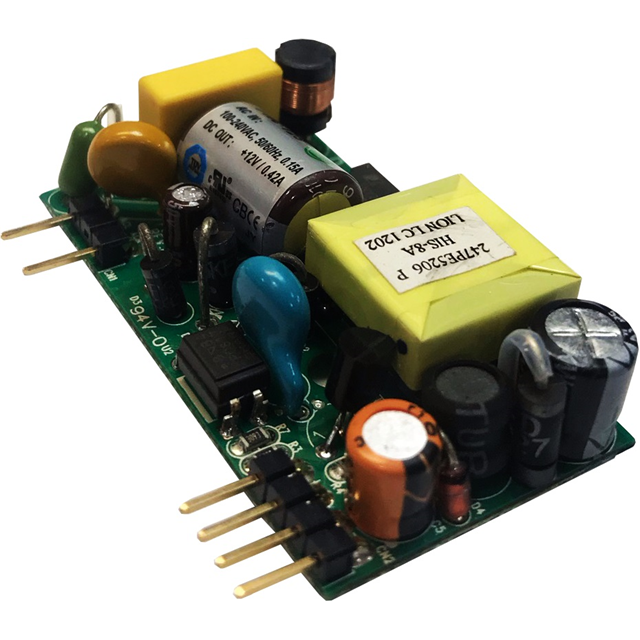

 Astrodyne TDI | ±1% | 1 % | 60601-1 60950-1 | Open Frame | 6-SIP Module | ITE (Commercial) Medical | 3.3 V | 264 VAC | 90 VAC | 28.5 mm | 1.93 in | 1.12 " | 49 mm | 13 mm | 0.51 in | 1 | Through Hole | 1.25 A | 65 % | -25 °C | 65 °C | 4 W | Universal Input | cURus UL |

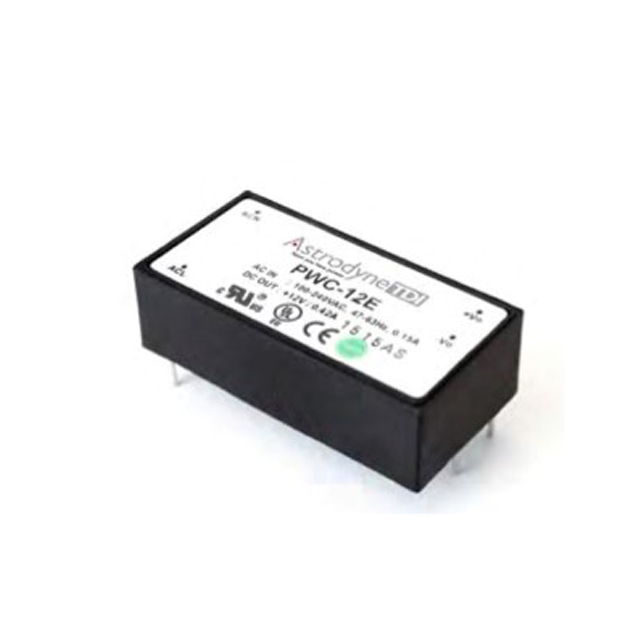

 Astrodyne TDI | ±1% | 0.5 % | Enclosed | 4-DIP Module | ITE (Commercial) | 3.3 V | 264 VAC | 90 VAC | 15.2 mm | 2 in | 0.6 " | 50.8 mm | 25.4 mm | 1 " | 1 | Through Hole | 1.25 A | 65 % | -25 °C | 65 °C | 4.1 W | Universal Input | CE cURus UL |
