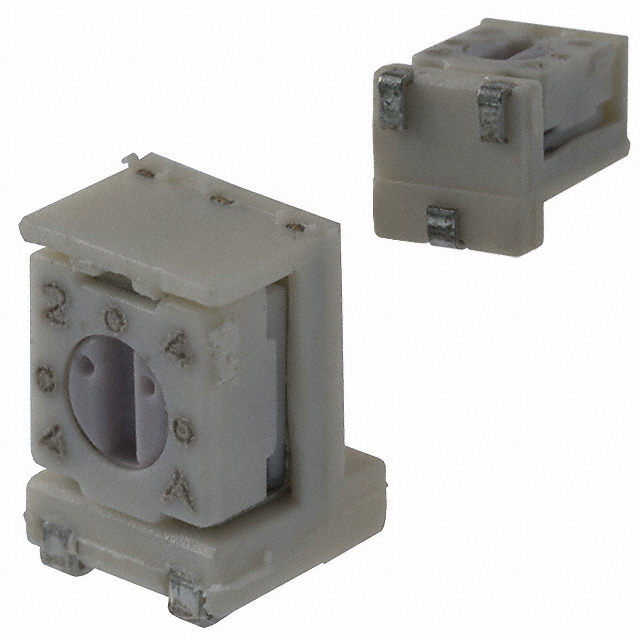

3313S Series

Catalog

TRIMMER 200 OHM 0.125W J LEAD

Part	Termination Style	Resistive Material	Resistance	Tolerance	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Temperature Coefficient	Number of Turns	Adjustment Type
Bourns Inc. 3313S-1-201E	J Lead	Cermet	200 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-1-100E	J Lead	Cermet	10 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	150 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-2-503E	J Lead	Cermet	50000 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-2-103E	J Lead	Cermet	10000 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-1-104E	J Lead	Cermet	100 kOhms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-1-203E	J Lead	Cermet	20 kOhms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-1-503E	J Lead	Cermet	50000 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-1-254E	J Lead	Cermet	250000 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment
Bourns Inc. 3313S-1-102E	J Lead	Cermet	1000 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	100 ppm/°C	1	Side Adjustment

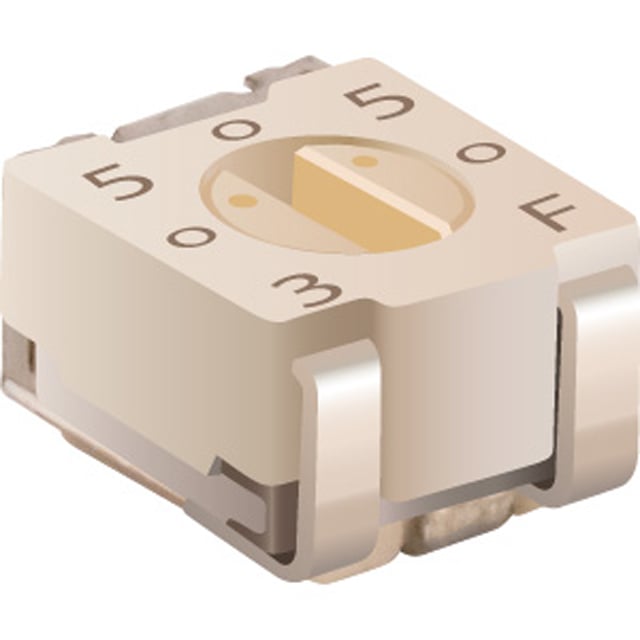

Bourns Inc. 3313S-2-101E	J Lead	Cermet	100 Ohms	20 %	0.125 W	0.125 W	0.159 in	4.05 mm	3.61 mm	0.142 in	Surface Mount	150 ppm/°C	1	Side Adjustment
