155212 Series

Catalog

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, SURFACE MOUNT STRAIGHT, 1552 SERIES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Rows [custom]	Termination	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Style	Contact Shape	Mounting Type	Shrouding	Pitch - Mating	Pitch - Mating	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Positions	Number of Positions Loaded	Current Rating (Amps)	Contact Finish - Post	Fastening Type	Connector Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post

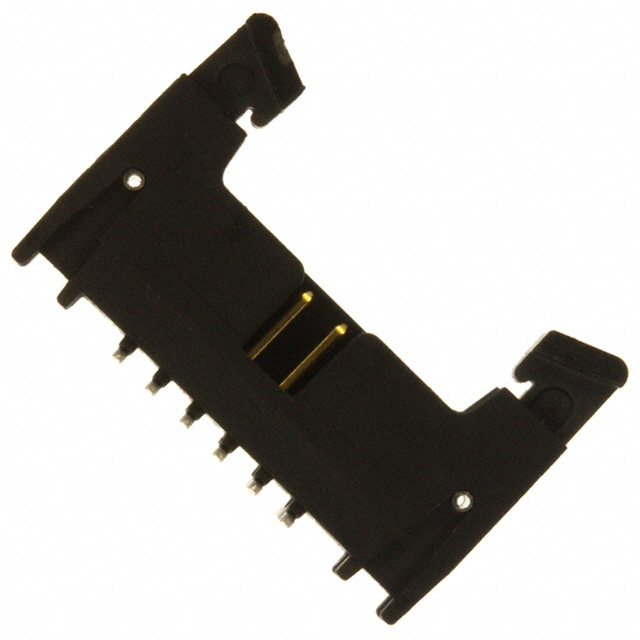

3M Electronic Specialty 155212-2300-RB	200 µin	5.08 µm	Male Pin	0.76 Ám	30 Áin	Black	2	Solder	Gold	10.8 mm	0.425 in	-55 C	105 ░C	UL94 V-0	3.81 mm	0.15 in	Board to Cable/Wire	Square	Surface Mount	Shrouded - 4 Wall	0.079 "	2 mm	Copper Alloy	2 mm	0.079 in	Keying Slot	12	All	1.25 A	Tin	Latch Lock/Eject Hooks	Header

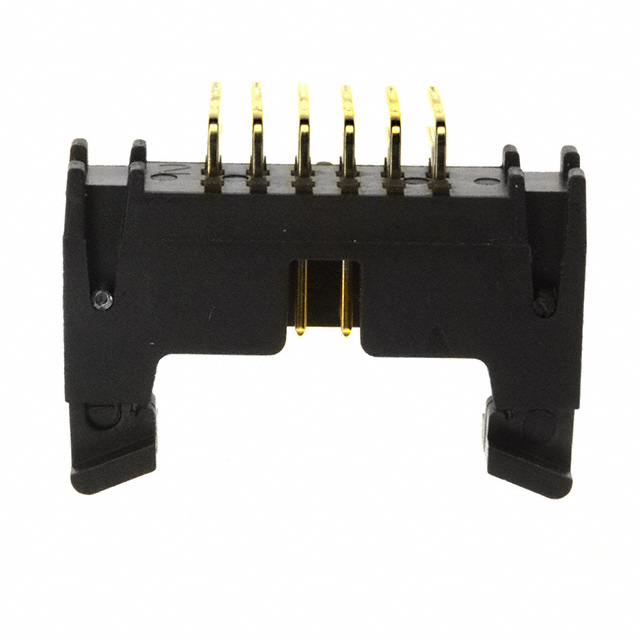

3M Electronic Specialty 155212-5302-RB	200 µin	5.08 µm	Male Pin	0.76 Ám	30 Áin	Black	2	Solder	Gold			-55 C	105 ░C	UL94 V-0	3.81 mm	0.15 in	Board to Cable/Wire	Square	Right Angle Through Hole	Shrouded - 4 Wall	0.079 "	2 mm	Copper Alloy	2 mm	0.079 in	Keying Slot	12	All	1.25 A	Tin	Latch Lock/Eject Hooks	Header	6.28 mm	0.247 "	0.112 in	2.84 mm
3M Electronic Specialty 155212-2200-RB	200 µin	5.08 µm	Male Pin	0.76 Ám	30 Áin	Black	2	Solder	Gold	10.8 mm	0.425 in	-55 C	105 ░C	UL94 V-0	3.81 mm	0.15 in	Board to Cable/Wire	Square	Surface Mount	Shrouded - 4 Wall	0.079 "	2 mm	Copper Alloy	2 mm	0.079 in	Keying Slot	12	All	1.25 A	Tin	Latch Lock/Eject Hooks	Header
3M Electronic Specialty 155212-5303-RB	200 µin	5.08 µm	Male Pin	0.76 Ám	30 Áin	Black	2	Solder	Gold			-55 C	105 ░C	UL94 V-0	3.81 mm	0.15 in	Board to Cable/Wire	Square	Right Angle Through Hole	Shrouded - 4 Wall	0.079 "	2 mm	Copper Alloy	2 mm	0.079 in	Keying Slot	12	All	1.25 A	Tin	Latch Lock/Eject Hooks	Header	6.28 mm	0.247 "			3.94 mm	0.155 "
3M Electronic Specialty 155212-5203-RB	200 µin	5.08 µm	Male Pin	0.76 Ám	30 Áin	Black	2	Solder	Gold			-55 C	105 ░C	UL94 V-0	3.81 mm	0.15 in	Board to Cable/Wire	Square	Right Angle Through Hole	Shrouded - 4 Wall	0.079 "	2 mm	Copper Alloy	2 mm	0.079 in	Keying Slot	12	All	1.25 A	Tin	Latch Lock/Eject Hooks	Header	6.28 mm	0.247 "			3.94 mm	0.155 "
