HS2P9F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT FMALE 9POS GOLD SOLDER
| Part | Color | Mounting Type | Number of Positions | Ingress Protection | Contact Material | Orientation | Voltage Rating | Mounting Feature | Shielding | Connector Type | Fastening Type | Shell Material | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Shell Finish | Applications | Contact Finish - Mating | Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

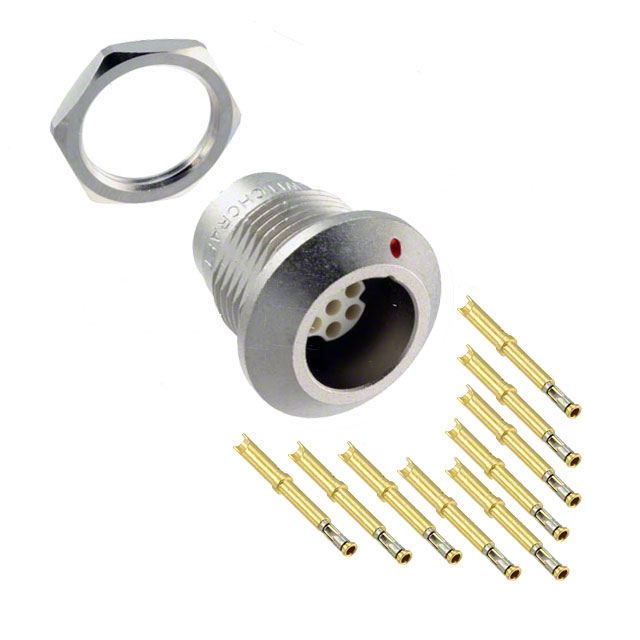

 Switchcraft Inc. | Silver | Panel Mount Through Hole | 9 | IP66 IP67 IP68 | Copper Alloy | Keyed | 30 VAC | Bulkhead - Front Side Nut | Shielded | Receptacle Female Sockets | Push-Pull | Copper Alloy | Metal | 135 °C | -40 °C | Liquid Crystal Polymer (LCP) | Electroless Nickel | Agriculture Audio General Medical Testing Equipment & Measurement | Gold | Solder | |

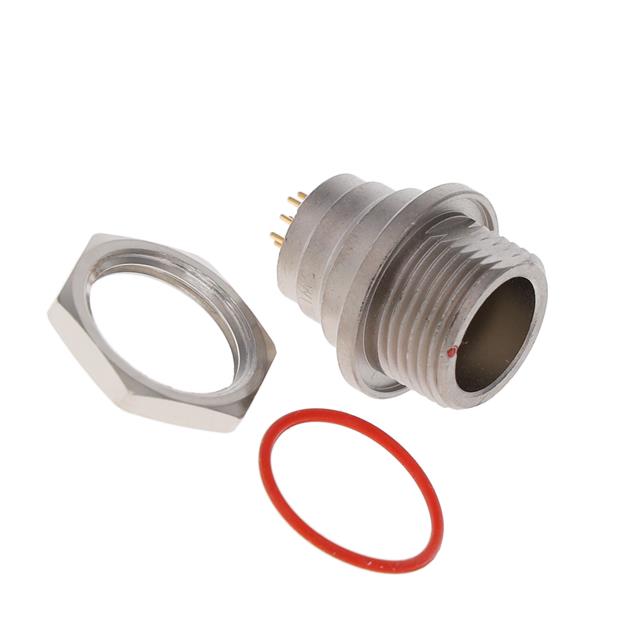

 Switchcraft Inc. | Silver | 9 | IP66 IP67 IP68 | Copper Alloy | Keyed | 30 VAC | Bulkhead - Rear Side Nut | Shielded | Receptacle Female Sockets | Push-Pull | Copper Alloy | Metal | 135 °C | -40 °C | Liquid Crystal Polymer (LCP) | Electroless Nickel | Agriculture Audio General Medical Testing Equipment & Measurement | Gold | Crimp Solder Cup | UL94 HF-1 | |

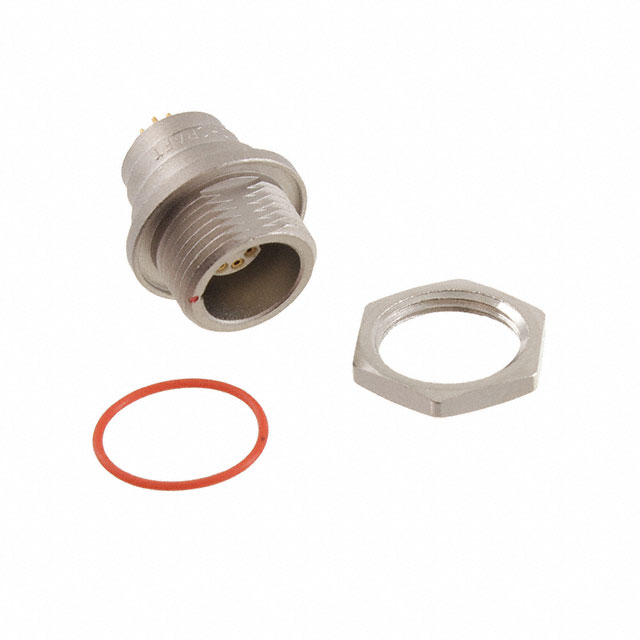

 Switchcraft Inc. | Silver | Panel Mount Through Hole | 9 | IP66 IP67 IP68 | Copper Alloy | Keyed | 30 VAC | Bulkhead - Front Side Nut | Shielded | Receptacle Female Sockets | Push-Pull | Copper Alloy | Metal | 135 °C | -40 °C | Liquid Crystal Polymer (LCP) | Electroless Nickel | Agriculture Audio General Medical Testing Equipment & Measurement | Gold | Solder |
