ALCOSWITCH MRSS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

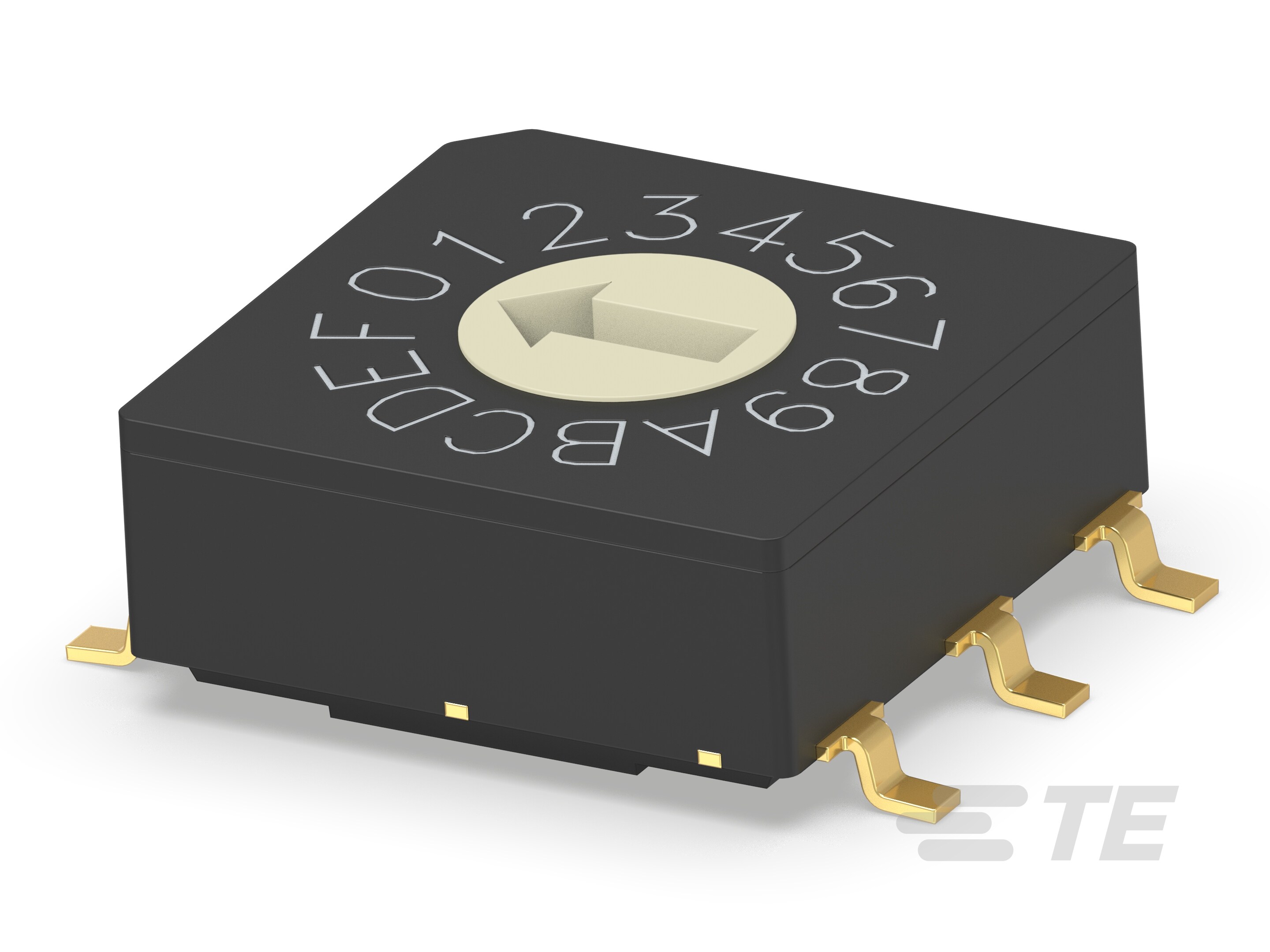

MRSSV 2.54 BL SD COM 16 SMT GULL TUB

...

Part	Length [x]	Length [x]	Electrical Life	Mechanical Life	Body Material	Actuator Type	Contact Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Positions	Voltage Rating	Actuator Level	Contact Finish	Circuit	Pitch	Pitch	Washable	Pitch	Pitch	Length	Length
TE Connectivity AMP Connectors MRSSV1DC16SMGWT	7.2 mm	0.283 in	10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Rotary for Tool	Copper Alloy	Gull Wing	85 °C	-40 C	0.122 in	3.1 mm	Surface Mount	16	20 VAC/DC	Flush Recessed	Gold	Hexadecimal Complement	2.54 mm	0.1 "
TE Connectivity AMP Connectors MRSSV1DC10THT						Rotary for Tool	Copper Alloy	PC Pin	85 °C	-40 C	0.13 in	3.3 mm	Through Hole	10	20 VAC/DC	Flush Recessed	Gold	BCD Complement	2.54 mm	0.1 "

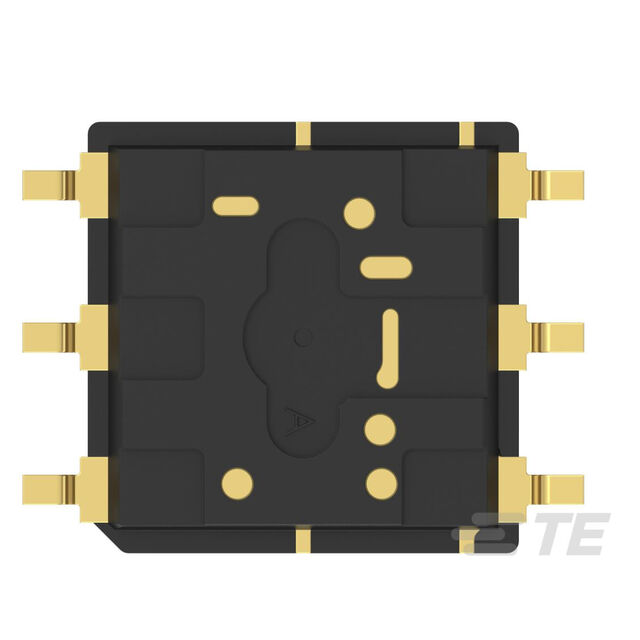

TE Connectivity AMP Connectors MRSSV1DC16SMGWTR	7.2 mm	0.283 in	10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Rotary for Tool	Copper Alloy	Gull Wing	85 °C	-40 C	0.122 in	3.1 mm	Surface Mount	16	20 VAC/DC	Flush Recessed	Gold	Hexadecimal Complement	2.54 mm	0.1 "
TE Connectivity AMP Connectors MRSSV1DR16SMJT	7.2 mm	0.283 in	10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Rotary for Tool	Copper Alloy	J Lead	85 °C	-40 C	0.119 in	3.02 mm	Surface Mount	16	20 VAC/DC	Flush Recessed	Gold	Hexadecimal	2.54 mm	0.1 "
TE Connectivity AMP Connectors MRSSV0DR16SMJTR	7.2 mm	0.283 in	10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Rotary for Tool	Copper Alloy	J Lead	85 °C	-40 C	0.119 in	3.02 mm	Surface Mount	16	20 VAC/DC	Flush Recessed	Gold	Hexadecimal	2.54 mm	0.1 "
TE Connectivity AMP Connectors MRSSH4DR16SMGWT						Rotary for Tool	Copper Alloy	Gull Wing	85 °C	-40 C	0.303 in	7.7 mm	Right Angle Surface Mount	16	20 VAC/DC	Flush Recessed	Gold	Hexadecimal	1.27 mm			0.05 "	Half
TE Connectivity AMP Connectors MRSSH4DR10THT			10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Rotary for Tool	Copper Alloy	PC Pin	85 °C	-40 C	0.303 in	7.7 mm	Right Angle Through Hole	10	20 VAC/DC	Flush Recessed	Gold	BCD	1.27 mm			0.05 "	Half	7.7 mm	0.303 in
TE Connectivity AMP Connectors MRSSV1DG16SMJTR	7.2 mm	0.283 in	10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Rotary for Tool	Copper Alloy	J Lead	85 °C	-40 C	0.119 in	3.02 mm	Surface Mount	16	20 VAC/DC	Flush Recessed	Gold		2.54 mm	0.1 "

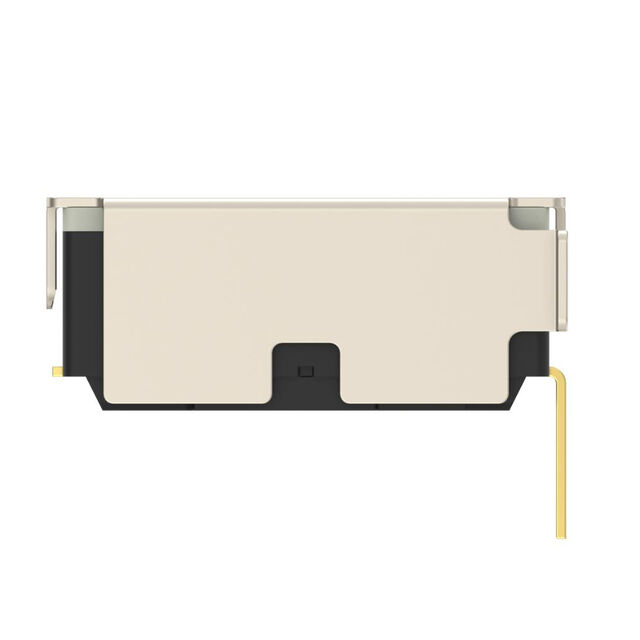

TE Connectivity AMP Connectors MRSSH4DG16SMGWTR			10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Rotary for Tool	Copper Alloy	Gull Wing	85 °C	-40 C	0.303 in	7.7 mm	Right Angle Surface Mount	16	20 VAC/DC	Flush Recessed	Gold		1.27 mm			0.05 "	Half	7.7 mm	0.303 in
TE Connectivity AMP Connectors MRSSH4DR16THT						Rotary for Tool	Copper Alloy	PC Pin	85 °C	-40 C	0.303 in	7.7 mm	Right Angle Through Hole	16	20 VAC/DC	Flush Recessed	Gold	Hexadecimal	1.27 mm			0.05 "	Half
