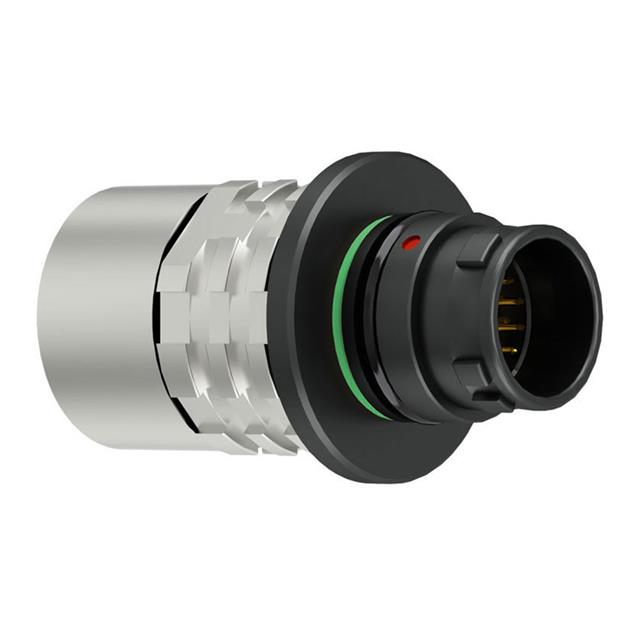

A10WDM-P Series

Manufacturer: ODU

Catalog

ODU AMC HD PLUG, STY 1, SZ 0, SE

Part	Contact Material	Shielding	Orientation	Ingress Protection	Contact Finish - Mating	Color	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Features	Backshell Material, Plating	Insert Material	Current Rating (Amps)	Shell Material	Connector Type	Fastening Type	Mounting Type	Cable Opening	Cable Opening	Shell Finish	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Positions [custom]	Number of Positions [custom]
ODU A10WDM-P09XMM0-0000	Copper Alloy	Shielded	D	IP68 - Dust Tight Waterproof	Gold	Black Silver	Metal	-51 °C	125 °C	UL94 V-0	Backshell	Brass Ruthenium over Electroless Nickel	Polyetheretherketone (PEEK)	1 A 5 A	Brass	Plug Male Pins	Detent Lock Push-Pull	Free Hanging (In-Line)	0.276 in	7 mm	Ruthenium over Electroless Nickel	Industrial Medical Military	50 µin	1.27 µm	9
ODU A10WDM-P12XMM0-0000	Copper Alloy	Shielded	D	IP68 - Dust Tight Waterproof	Gold	Black Silver	Metal	-51 °C	125 °C	UL94 V-0	Backshell	Brass Ruthenium over Electroless Nickel	Polyetheretherketone (PEEK)	1 A 5 A	Brass	Plug Male Pins	Detent Lock Push-Pull	Free Hanging (In-Line)	0.276 in	7 mm	Ruthenium over Electroless Nickel	Industrial Medical Military	50 µin	1.27 µm		2	10
ODU A10WDM-P16XBC0-0000	Copper Alloy	Shielded	D	IP68 - Dust Tight Waterproof	Gold	Black Silver	Metal	-51 °C	125 °C	UL94 V-0	Backshell	Brass Ruthenium over Electroless Nickel	Polyetheretherketone (PEEK)		Brass	Plug Male Pins	Detent Lock Push-Pull	Free Hanging (In-Line)	0.276 in	7 mm	Ruthenium over Electroless Nickel	Industrial Medical Military	50 µin	1.27 µm	16
