P52-15 Series

Manufacturer: Polytron

Catalog

AC/DC CONVERTER 5V +/-15V

Part	Load Regulation	Line Regulation	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Voltage - Output 1	Number of Outputs	Voltage - Output 2	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Type	Voltage - Output 3	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output 1	Voltage - Isolation	Current - Output 2	Current - Output 3
Polytron P52-15XE	0.1 %	0.02 %	240 VAC	105 VAC	CE cURus UL	5 V	3	15 V	Through Hole	88.9 mm	63.5 mm	39.6 mm	2.5 "	1.56 "	3.5 "	SCP	Enclosed	-15 V	ITE (Commercial)	7-DIP Module	71 °C	-25 °C	100 mA 250 mA
Polytron P52-15QXT/MHIA			220 VAC	100 VAC	CE cURus	5 V	3	15 V	Chassis Mount	104.1 mm	63.5 mm	39.6 mm	2.5 "	1.56 "	4.1 "		Enclosed	-15 V	Medical		71 °C	-25 °C		250 mA	4000 V	100 mA	100 mA
Polytron P52-15AX/MHIA	0.1 %	0.02 %	220 VAC	115 VAC	CE cURus	5 V	3	15 V	Through Hole	88.9 mm	63.5 mm	39.6 mm	2.5 "	1.56 "	3.5 "		Enclosed	-15 V	Medical	7-DIP Module	71 °C	-25 °C	100 mA 250 mA

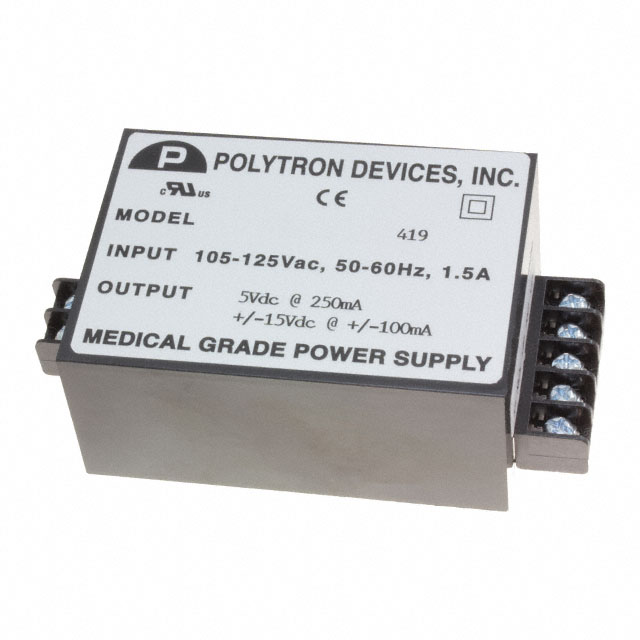

Polytron P52-15T/MHIA			125 VAC	105 VAC	CE cURus	5 V	3	15 V	Chassis Mount	104.1 mm	63.5 mm	39.6 mm	2.5 "	1.56 "	4.1 "		Enclosed	-15 V	Medical		71 °C	-25 °C		250 mA	4000 V	100 mA	100 mA
Polytron P52-15X/MHIA	0.1 %	0.02 %	220 VAC	105 VAC	CE cURus	5 V	3	15 V	Through Hole	88.9 mm	63.5 mm	39.6 mm	2.5 "	1.56 "	3.5 "		Enclosed	-15 V	Medical	7-DIP Module	71 °C	-25 °C	100 mA 250 mA
