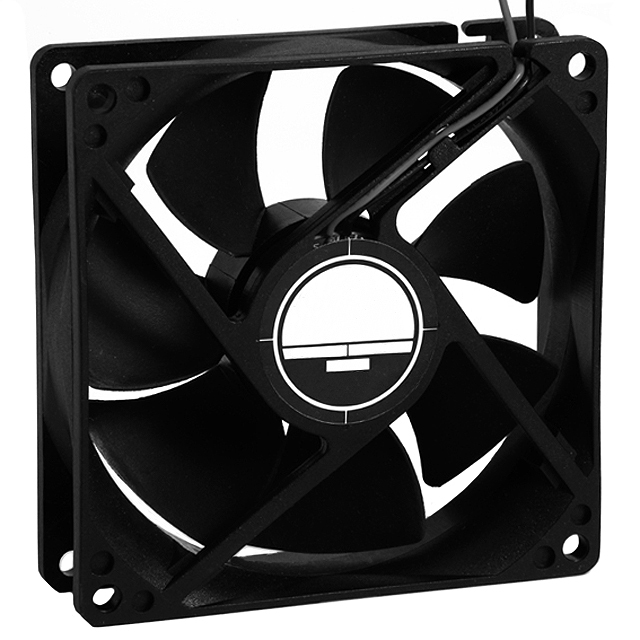

OD9225 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN AXIAL 92.5X25MM 24VDC WIRE
| Part | Material - Blade | Material - Frame | Fan Type | Termination | Width [y] | Ingress Protection | Size / Dimension [y] | Size / Dimension [x] | Features | Voltage - Rated | Bearing Type | Approval Agency | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Static Pressure | Static Pressure | Noise | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Air Flow | Air Flow | Current Rating (Amps) | Power (Watts) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 3 Wire Leads | 25 mm | IP55 - Dust Protected Water Resistant | 92.5 mm | 92.5 mm | Alarm Sensor | 24 VDC | Ball | cURus TUV | ||||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 3 Wire Leads | 25 mm | IP55 - Dust Protected Water Resistant | 92.5 mm | 92.5 mm | Alarm Sensor | 12 VDC | Ball | cURus TUV | ||||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 3 Wire Leads | 25 mm | 92.5 mm | 92.5 mm | Speed Sensor (Tach) | 24 VDC | Sleeve | cURus TUV | |||||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 2 Wire Leads | 25 mm | 92.5 mm | 92.5 mm | 12 VDC | Ball | cURus TUV | 40 °C 60000 Hrs | 7 V | 17 VDC | 0.07 in H2O | 17.4 Pa | 28 dB | 2100 RPM | 80 °C | -20 ░C | 39 CFM | 1.09 m³/min | |||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 3 Wire Leads | 25 mm | 92.5 mm | 92.5 mm | Locked Rotor Sensor | 12 VDC | Sleeve | cURus TUV | |||||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 2 Wire Leads | 25 mm | 92.5 mm | 92.5 mm | 24 VDC | Ball | cURus TUV | 40 °C 60000 Hrs | 12 VDC | 28 V | 0.09 in H2O | 22.4 Pa | 31 dB(A) | 2400 RPM | 80 °C | -20 ░C | 44 CFM | 1.23 m³/min | 0.09 A | ||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 3 Wire Leads | 25 mm | 92.5 mm | 92.5 mm | Speed Sensor (Tach) | 24 VDC | Sleeve | cURus TUV | |||||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 2 Wire Leads | 25 mm | 92.5 mm | 92.5 mm | 48 VDC | Ball | cURus TUV | 40 °C 60000 Hrs | 32 VDC | 56 VDC | 0.24 in H2O | 59.8 Pa | 33 dB(A) | 2800 RPM | 80 °C | -20 ░C | 50 CFM | 1.4 m³/min | 0.09 A | ||||
ORION FANS | Polybutylene Terephthalate (PBT) | Tubeaxial | 2 Wire Leads | 25 mm | 92 mm | 92 mm | 12 VDC | Ball | cURus TUV | 70000 Hrs | 8 V | 13.8 VDC | 0.27 in H2O | 67.3 Pa | 43 dB | 3575 RPM | 65 °C | -20 ░C | 65.7 CFM | 1.84 m³/min | 0.29 A | 3 W | (-20 ~ 65°C) | |||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 3 Wire Leads | 25 mm | 92.5 mm | 92.5 mm | PWM Control | 12 VDC | Ball | cURus TUV |
