3010-10 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Insulation Material	Features	Fastening Type	Contact Type	Number of Rows [custom]	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post	Mounting Type	Contact Material	Contact Shape	Voltage Rating	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Current Rating (Amps)	Connector Type	Style	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height	Insulation Height	Contact Finish	Row Spacing	Row Spacing	Contact Finish Thickness	Pitch	Pitch	Cable Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

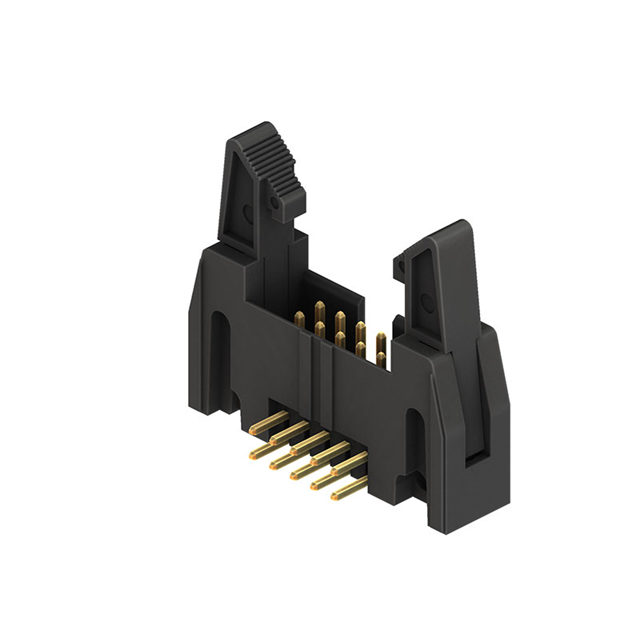

CNC Tech 3010-10-002-13-00	Polybutylene Terephthalate (PBT)	Keying Slot	Latch Lock/Eject Hooks Long	Male Pin	2	Solder	Gold	-40 C	105 ░C	0.134 "	3.4 mm	Right Angle Through Hole	Brass	Square	250 VAC	10	UL94 V-0	Flash	3 A	Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm	0.327 "	8.3 mm
CNC Tech 3010-10-003-12-00	Nylon 9T Polyamide (PA9T)	Keying Slot	Latch Lock/Eject Hooks	Male Pin	2	Solder	Gold	-40 C	105 ░C			Surface Mount	Brass	Square	250 VAC	10	UL94 V-0	Flash	3 A	Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm		17 mm	0.669 in
CNC Tech 3010-10-002-11-00	Polybutylene Terephthalate (PBT)	Keying Slot	Push-Pull	Male Pin	2	Solder	Gold	-40 C	105 ░C	0.134 "	3.4 mm	Right Angle Through Hole	Brass	Square		10	UL94 V-0	Flash		Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm		8.2 mm	0.323 in

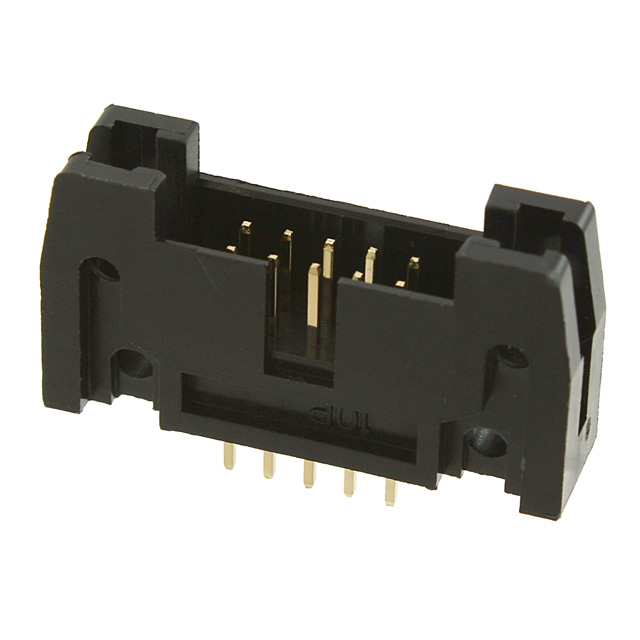

CNC Tech 3010-10-001-11-00	Polybutylene Terephthalate (PBT)	Keying Slot	Push-Pull	Male Pin	2	Solder	Gold	-40 C	105 ░C	0.134 "	3.4 mm	Through Hole	Brass	Square		10	UL94 V-0	Flash		Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm		17 mm	0.669 in

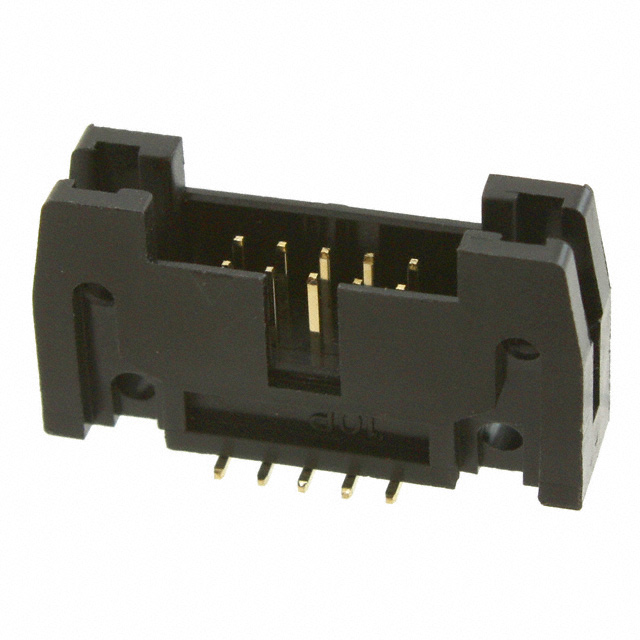

CNC Tech 3010-10-003-11-00	Polybutylene Terephthalate (PBT)	Keying Slot	Push-Pull	Male Pin	2	Solder	Gold	-40 C	105 ░C			Surface Mount	Brass	Square		10	UL94 V-0	Flash		Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm		17 mm	0.669 in
CNC Tech 3010-10-001-13-00	Polybutylene Terephthalate (PBT)	Keying Slot	Latch Lock/Eject Hooks Long	Male Pin	2	Solder	Gold	-40 C	105 ░C	0.134 "	3.4 mm	Through Hole	Brass	Square	250 VAC	10	UL94 V-0	Flash	3 A	Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm		17 mm	0.669 in

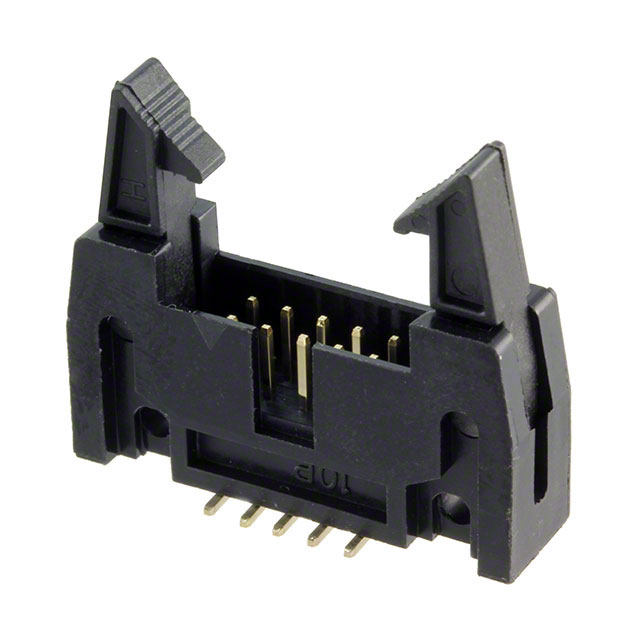

CNC Tech 3010-10-003-13-00	Nylon 9T Polyamide (PA9T)	Keying Slot	Latch Lock/Eject Hooks Long	Male Pin	2	Solder	Gold	-40 C	105 ░C			Surface Mount	Brass	Square	250 VAC	10	UL94 V-0	Flash	3 A	Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm		17 mm	0.669 in
CNC Tech 3010-10-002-12-00	Polybutylene Terephthalate (PBT)	Keying Slot	Latch Lock/Eject Hooks	Male Pin	2	Solder	Gold	-40 C	105 ░C	0.134 "	3.4 mm	Right Angle Through Hole	Brass	Square	250 VAC	10	UL94 V-0	Flash	3 A	Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm	0.327 "	8.3 mm

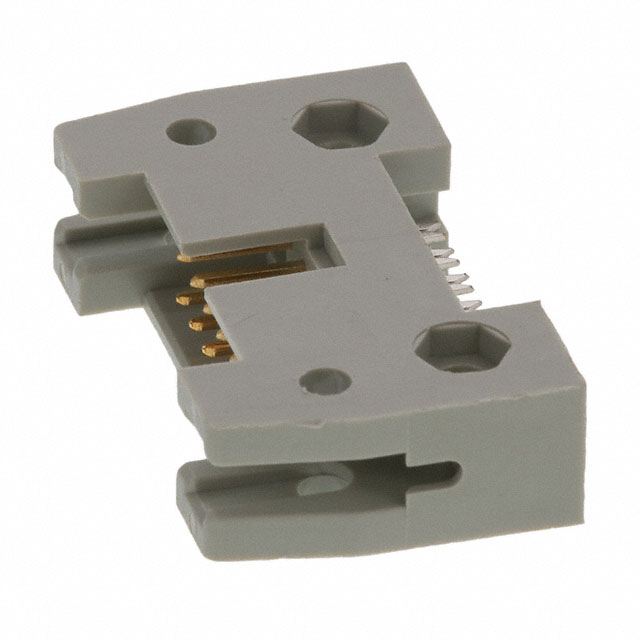

CNC Tech 3010-10-041-11-00		Polarizing Key	Push-Pull	Male Pin	2							Free Hanging (In-Line)				10				Header											Gold	2.54 mm	0.1 "	Flash	0.1 "	2.54 mm	IDC
CNC Tech 3010-10-002-12-99	Polybutylene Terephthalate (PBT)	Keying Slot	Latch Lock/Eject Hooks	Male Pin	2	Solder		-40 C	105 ░C	0.134 "	3.4 mm	Right Angle Through Hole	Brass	Square		10	UL94 V-0			Header	Board to Cable/Wire	All	0.1 in	2.54 mm	Shrouded - 4 Wall	0.1 "	2.54 mm	0.327 "	8.3 mm									2.03 µm	80 µin
