TP Series

Catalog

SPEAKERS & TRANSDUCERS PIEZO TRANSDUCER

Part	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Input Type	Port Location	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Sound Pressure Level (SPL)	Technology	Driver Circuitry	Mounting Type	Termination	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]

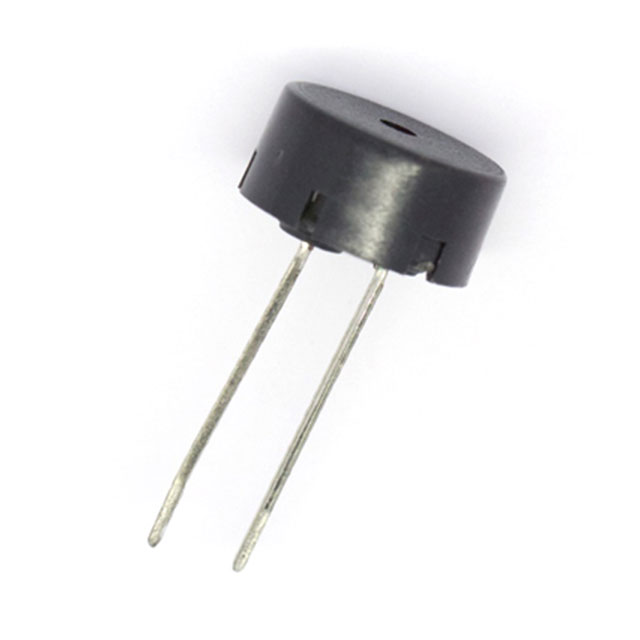

DB Unlimited TP124005-2	5 V	0.295 in	7.5 mm	Peak-Peak Signal	Top	4 kHz	-20 ░C	70 °C	5 mA	75 dB	Piezo	Externally Driven Transducer	Through Hole	PC Pins	1 V	30 V	12.2 mm	0.48 "
DB Unlimited TP244003-1	3 VDC			Peak-Peak Signal	Top	4.096 kHz	-20 ░C	60 °C	5 mA	75 dB	Piezo	Externally Driven Transducer	Flange Panel Mount	Wire Leads	1 V	30 V	24 mm	0.945 "	6 mm	0.236 "
DB Unlimited TP302505-1	3 VDC	0.504 "		Peak-Peak Signal	Top	2.5 kHz	-20 ░C	70 °C	3 mA	90 dB	Piezo	Externally Driven Transducer	Through Hole	PC Pins	1 V	30 V		1.181 "			12.8 mm	30 mm
DB Unlimited TP144005-1	5 V		4.7 mm	Peak-Peak Signal	Top	4 kHz	-20 ░C	70 °C	5 mA	75 dB	Piezo	Externally Driven Transducer	Surface Mount	Solder Pads	1	20 V				0.185 "			0.587 in	0.555 in	14.9 mm	14.1 mm
DB Unlimited TP174012-1	12 VDC			Peak-Peak Signal	Top	4 kHz			7 mA	90 dB	Piezo	Externally Driven Transducer	Surface Mount	Solder Pads	1 V	25 VDC	17 mm	0.669 in	6 mm	0.236 "

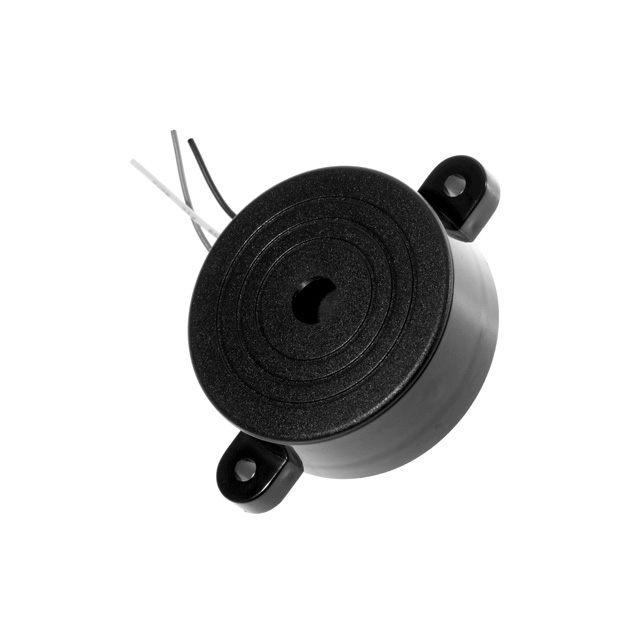

DB Unlimited TP412812-2	12 VDC	0.63 in		Peak-Peak Signal	Top	2.8 kHz	-20 ░C	60 °C	8 mA		Piezo	Externally Driven Transducer	Flange Panel Mount	Wire Leads	3 V	24 V	41.8 mm	1.646 in			16 mm

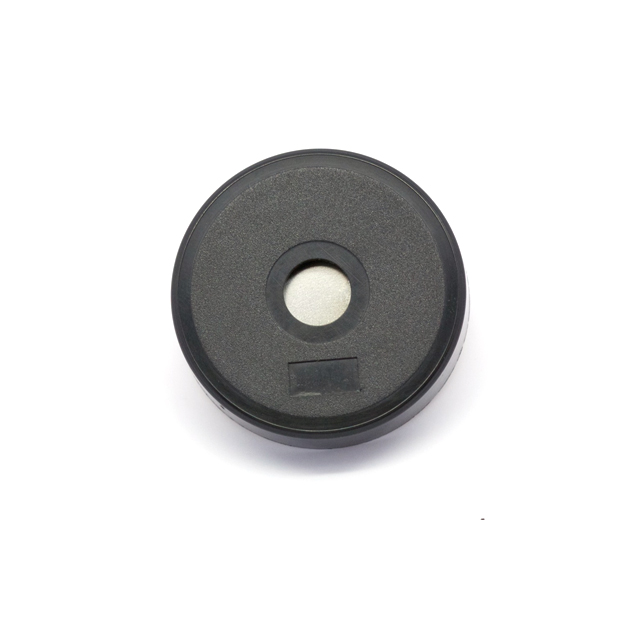

DB Unlimited TP341105-1	5 V		8.5 mm	Peak-Peak Signal	Top	1.1 kHz	-20 ░C	60 °C	2 mA	70 dB	Piezo	Externally Driven Transducer	Through Hole	PC Pins	1 V	30 V	34.2 mm	1.346 in		0.335 "
DB Unlimited TP262003-1	3 VDC	1.043 in		Peak-Peak Signal	Side	2 kHz	-40 C	85 °C	1 mA	70 dB	Piezo	Externally Driven Transducer	Through Hole	PC Pins	1 V	25 VDC					26.5 mm		0.866 "	0.276 in	22 mm	7 mm
