AQV252 Series

Catalog

MOSFET RELAY, MINIATURE, SPST-NO (1 FORM A), AC / DC, 60 V, 3.3 A, SOP-6, SURFACE MOUNT

Part	Output Type	Supplier Device Package	Mounting Type	Load Current	Voltage - Load [Max]	Voltage - Load [Min]	Termination Style	Voltage - Input	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Package / Case	Package / Case	Package / Case

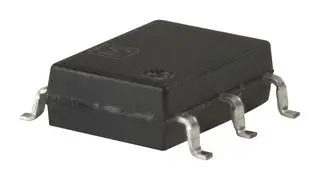

Panasonic Electronic Components AQV252G3SX	AC DC	6-SOP	Surface Mount	3.3 A	60 V	0 V	Gull Wing	1.14 VDC	85 °C	-40 C	60 mOhms	6-SOP (0.173" 4.40mm)
Panasonic Electronic Components AQV252AZ	AC DC	6-SMD	Surface Mount	400 mA	60 V	0 V	Gull Wing	1.14 VDC	85 °C	-40 C	1.4 Ohms	6-SMD	7.62 mm	0.3 in
Panasonic Electronic Components AQV252AX	AC DC	6-SMD	Surface Mount	400 mA	60 V	0 V	Gull Wing	1.14 VDC	85 °C	-40 C	1.4 Ohms	6-SMD	7.62 mm	0.3 in
Panasonic Electronic Components AQV252G3AX	AC DC	6-SMD	Surface Mount	3.5 A	60 V	0 V	Gull Wing	1.32 VDC	85 °C	-40 C	60 mOhms	6-SMD	7.62 mm	0.3 in
Panasonic Electronic Components AQV252GAX	AC DC	6-SMD	Surface Mount	2.5 A	60 V	0 V	Gull Wing	1.14 VDC	85 °C	-40 C	0.12 Ohms	6-SMD	7.62 mm	0.3 in
Panasonic Electronic Components AQV252G2SZ	AC DC	6-SOP	Surface Mount	3 A	50 V	0 V	Gull Wing	1.14 VDC	85 °C	-40 C	70 mOhm	6-SOP (0.173" 4.40mm)
Panasonic Electronic Components AQV252G2S	AC DC	6-SOP	Surface Mount	3 A	50 V	0 V	Gull Wing	1.14 VDC	85 °C	-40 C	70 mOhm	6-SOP (0.173" 4.40mm)
Panasonic Electronic Components AQV252HA
Panasonic Electronic Components AQV252G	AC DC	6-DIP	Through Hole	2.5 A	60 V	0 V	PC Pin	1.14 VDC	85 °C	-40 C	0.12 Ohms	6-DIP (0.300" 7.62mm)
Panasonic Electronic Components AQV252HAX
