307-024 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
| Part | Termination Rows | Material - Insulation | Mounting Type | Contact Finish | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Number of Positions/Bay/Row | Number of Positions | Color | Read Out | Card Type | Card Thickness [Max] | Card Thickness [Min] | Gender | Pitch | Pitch | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Rows [custom] | Termination Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

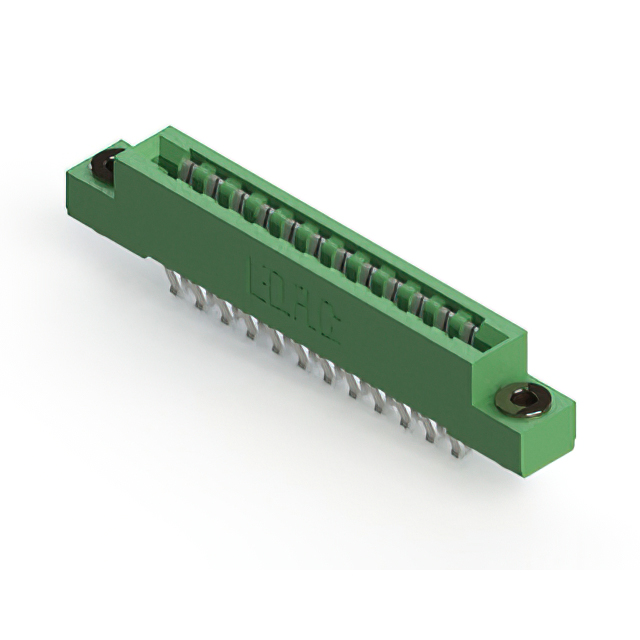

 EDAC Inc. | 1 | Polyester Thermoplastic | Right Angle Through Hole | Tin | Semi Bellows | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | 24 | 24 | Green | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | 1 | Solder | |||||

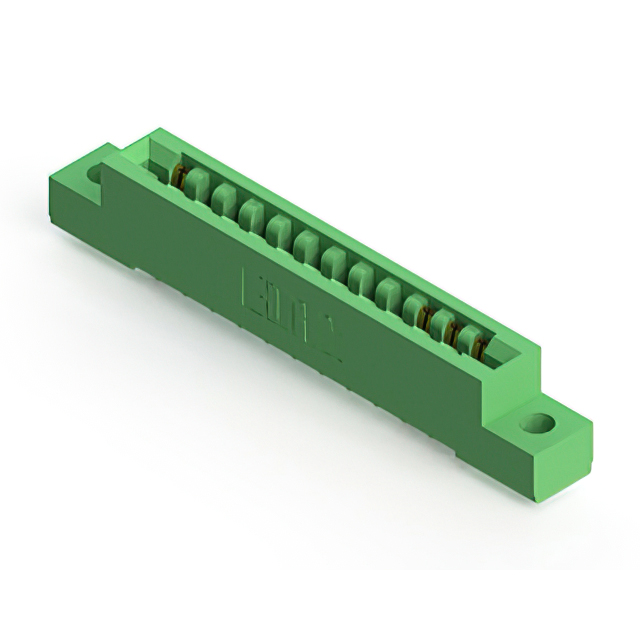

 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | Gold | Semi Bellows | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | 24 | 24 | Green | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | 1 | Solder | 0.25 Ám | 10 Áin | |||

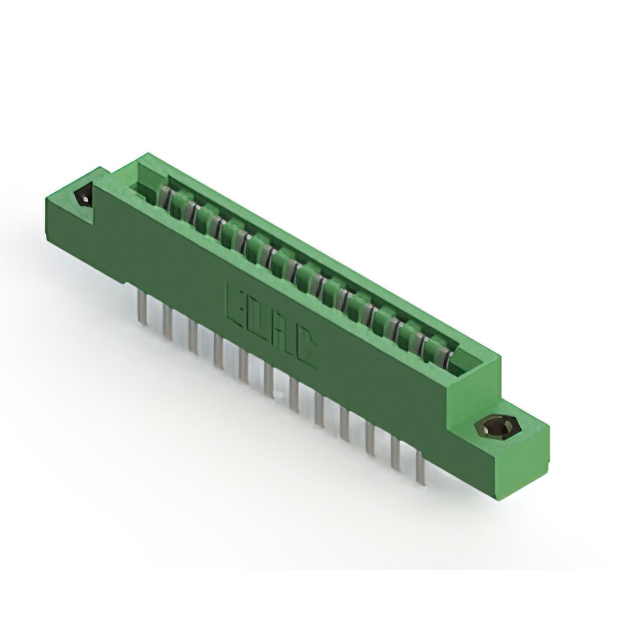

 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | Gold | Semi Bellows | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 24 | 24 | Green | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | 1 | Wire Wrap | 0.25 Ám | 10 Áin | Card Guides | ||||

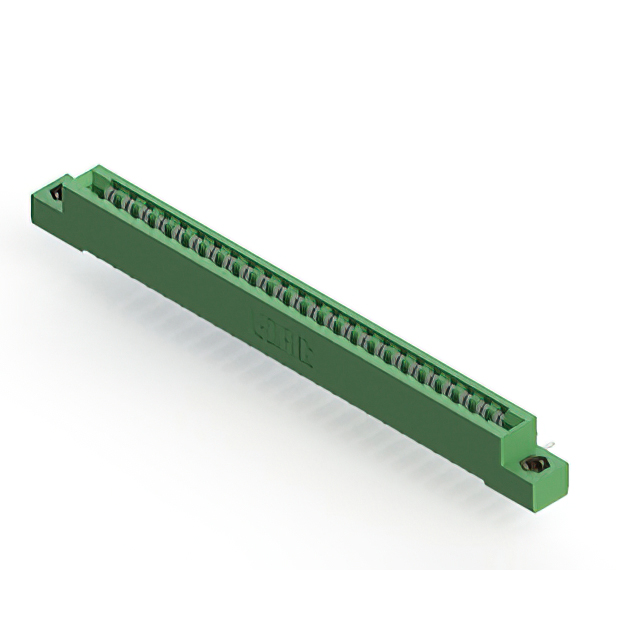

 EDAC Inc. | 1 | Polyester Thermoplastic | Right Angle Through Hole | Tin | Semi Bellows | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | 24 | 48 | Green | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | Solder | 2 | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Right Angle Through Hole | Tin | Semi Bellows | -40 C | 105 ░C | Copper Alloy | 24 | 48 | Green | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | Solder | 2 | ||||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Right Angle Through Hole | Tin | Semi Bellows | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 24 | 48 | Green | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | Solder | 2 | |||||||
 EDAC Inc. | Polyester Thermoplastic | Right Angle Through Hole | Tin | Semi Bellows | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 12 | 24 | Green | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | Solder | 2 | 2 | |||||||
 EDAC Inc. | Polyester Thermoplastic | Through Hole | Gold | Semi Bellows | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | 12 | 24 | Green | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | Solder Eyelet(s) | 0.25 Ám | 10 Áin | 2 | 2 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | Tin | Semi Bellows | -40 C | 105 ░C | Copper Alloy | 24 | 24 | Green | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | 1 | Solder | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Board Edge Straddle Mount | Tin | Semi Bellows | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 12 | 24 | Green | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 3.96 mm | 0.156 in | Solder Eyelet(s) | Card Extender Card Guides | 2 | 2 |
