CDFS9W4 Series

Catalog

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-9W4, PLUG, 9 CONTACTS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Dielectric Material	Number of Rows [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]	Contact Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Ingress Protection	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Connector Style	Mounting Type	Flange Feature	Contact Finish	Features	Shell Material, Finish	Contact Finish Thickness
NorComp Inc. CDFS9W4103L212	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Plug Male Pins	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold	Grounding Indents	Nickel Plated Steel
NorComp Inc. CDFS9W4203L412	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold		Nickel Plated Steel

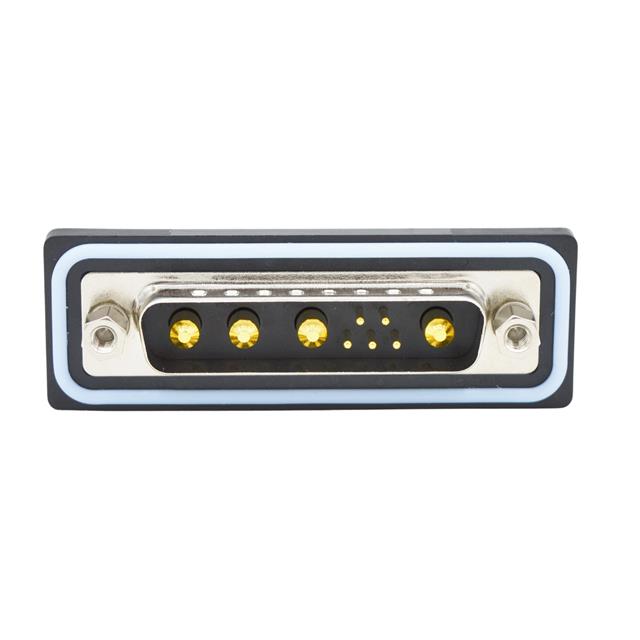

NorComp Inc. CDFS9W4103L211	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0			IP67 - Dust Tight Waterproof	Plug Male Pins	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold	Grounding Indents	Nickel Plated Steel	Flash

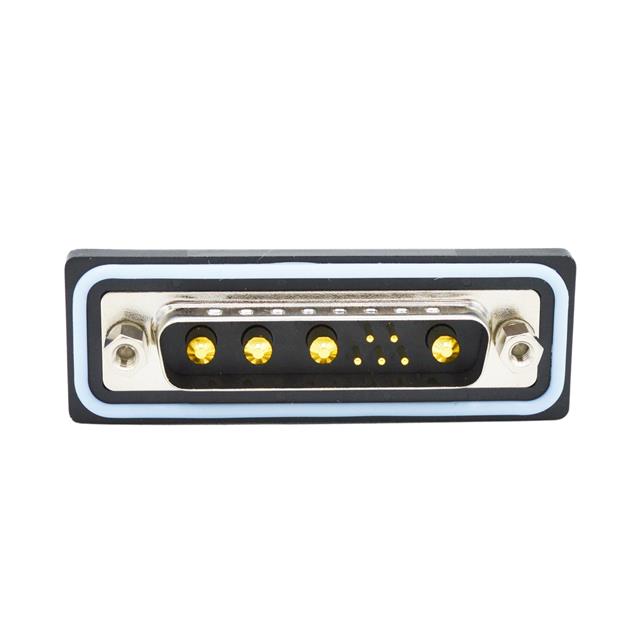

NorComp Inc. CDFS9W4103L411	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0			IP67 - Dust Tight Waterproof	Plug Male Pins	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold	Grounding Indents	Nickel Plated Steel	Flash

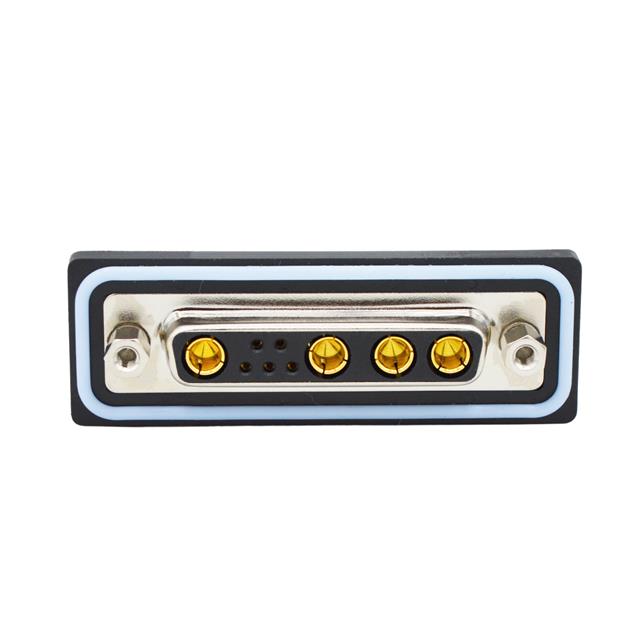

NorComp Inc. CDFS9W4203L411	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0			IP67 - Dust Tight Waterproof	Receptacle Female Sockets	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold		Nickel Plated Steel	Flash

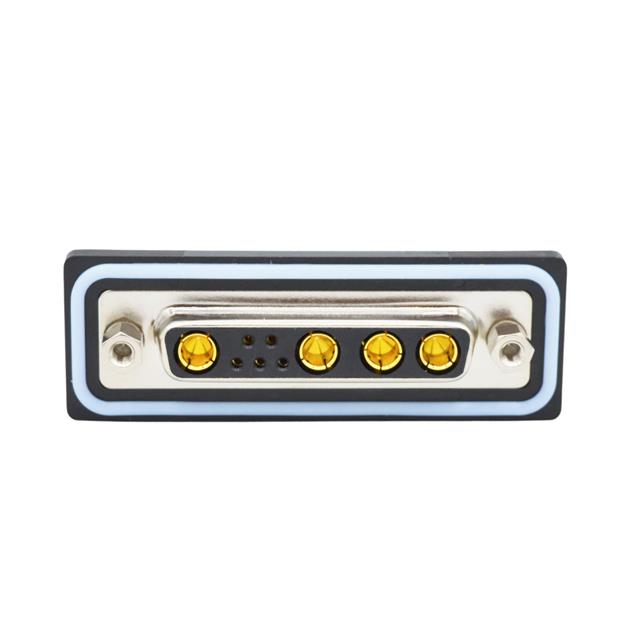

NorComp Inc. CDFS9W4203L211	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0			IP67 - Dust Tight Waterproof	Receptacle Female Sockets	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold		Nickel Plated Steel	Flash
NorComp Inc. CDFS9W4203L212	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold		Nickel Plated Steel

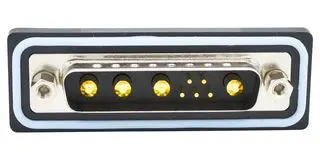

NorComp Inc. CDFS9W4103L412	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	2	DB B - 9W4	3	Signal and Power	UL94 V-0	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Plug Male Pins	4	5	Combo D-Sub	Panel Mount	4-40 Mating Side Female Screwlock	Gold	Grounding Indents	Nickel Plated Steel
