TPA200 Series

Catalog

EVAL MOD FOR TPA2000D1

Part	Max Output Power x Channels @ Load	Utilized IC / Part	Supplied Contents	Board Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load [custom]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Package / Case	Type	Package / Case	Max Output Power x Channels @ Load [custom]

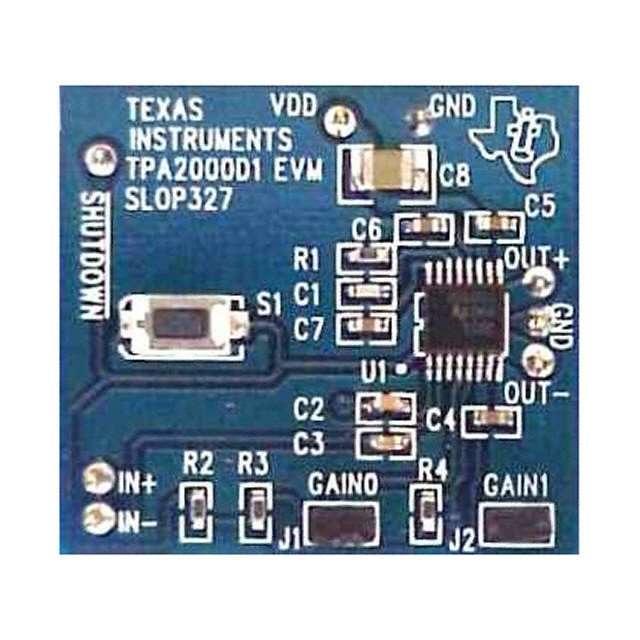

Texas Instruments TPA2000D1EVM	1 2 W 4 Ohm	TPA2000D1	Board(s)	Fully Populated	1-Channel (Mono)	2.7 V	5.5 V
Texas Instruments TPA2001D1EVM		TPA2001D1	Board(s)	Fully Populated	1-Channel (Mono)	2.7 V	5.5 V	1 1 W	8 Ohm
Texas Instruments TPA2000D1GQCR	1 2 W 4 Ohm				1-Channel (Mono)	2.7 V	5.5 V			Depop Differential Inputs Short-Circuit Protection Shutdown	85 °C	-40 °C	48-BGA MICROSTAR JUNIOR (4x4)	Surface Mount	48-VFBGA	Class D
Texas Instruments TPA2000D2PWG4	2 W				2-Channel (Stereo)	4.5 V	5.5 V			Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	85 °C	-40 °C	24-TSSOP	Surface Mount	24-TSSOP	Class D	0.173 in 4.4 mm	2
Texas Instruments TPA2005D1GQYR	1.45 W				1-Channel (Mono)	2.5 V	5.5 V			Differential Inputs Short-Circuit and Thermal Protection Shutdown	85 °C	-40 °C	15-BGA MICROSTAR JUNIOR (2.5x2.5)	Surface Mount	15-VFBGA	Class D		1
Texas Instruments TPA2005D1ZQYR	1.45 W				1-Channel (Mono)	2.5 V	5.5 V			Differential Inputs Short-Circuit and Thermal Protection Shutdown	85 °C	-40 °C	15-BGA MICROSTAR JUNIOR (2.5x2.5)	Surface Mount	15-VFBGA	Class D		1
Texas Instruments TPA2000D4EVM	2 W 90 mW	TPA2000D4	Board(s)	Fully Populated	2-Channel (Stereo) with Stereo Headphones	2.7 V	5.5 V

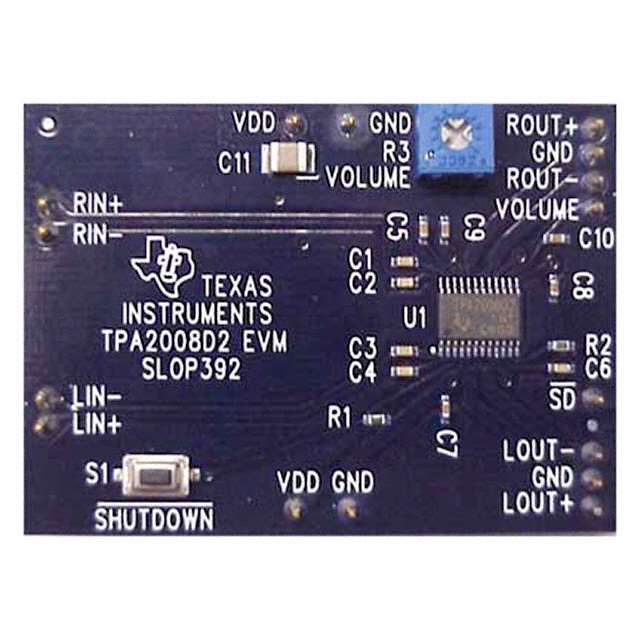

Texas Instruments TPA2008D2EVM	3 W	TPA2008D2	Board(s)	Fully Populated	2-Channel (Stereo)	4.5 V	5.5 V	2 3 Ohm
