325-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 16POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Material	Flange Feature	Termination	Color	Gender	Card Thickness	Card Thickness	Contact Finish	Card Type	Number of Positions	Read Out	Mounting Type	Number of Rows [custom]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-016-540-208	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	Cantilever	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Dual Edge	16	Dual	Through Hole	2	0.1 "	2.54 mm	-65 ░C	125 °C	8

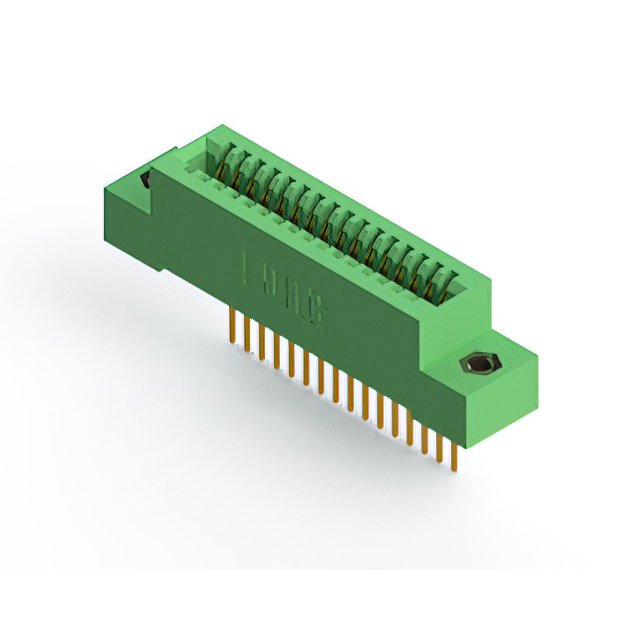

EDAC Inc. 325-016-540-107	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	Cantilever	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Single Edge	16	Single	Through Hole		0.1 "	2.54 mm	-65 ░C	125 °C	16	1	1
EDAC Inc. 325-016-500-209	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	Solder Eyelet(s)	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Dual Edge	16	Dual	Through Hole	2	0.1 "	2.54 mm	-65 ░C	125 °C	8			0.16 "	4.06 mm
EDAC Inc. 325-016-500-208	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	Cantilever	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Dual Edge	16	Dual	Through Hole	2	0.1 "	2.54 mm	-65 ░C	125 °C	8

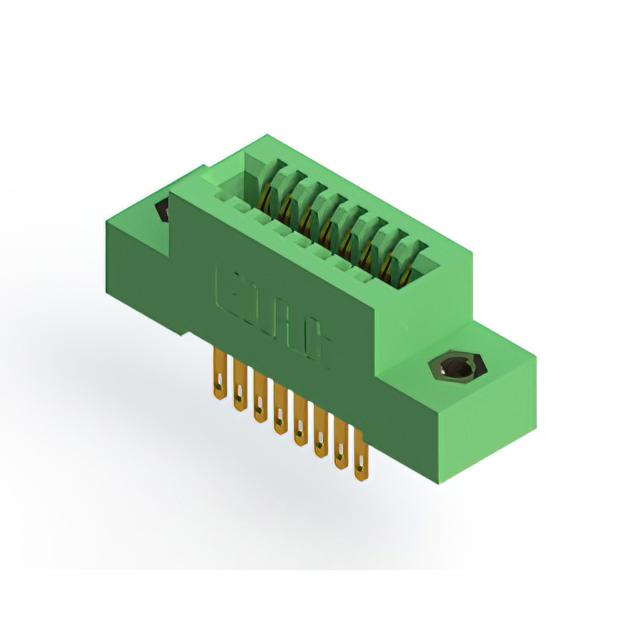

EDAC Inc. 325-016-500-207	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Solder Eyelet(s)	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Dual Edge	16	Dual	Through Hole	2	0.1 "	2.54 mm	-65 ░C	125 °C	8
EDAC Inc. 325-016-540-207	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Dual Edge	16	Dual	Through Hole	2	0.1 "	2.54 mm	-65 ░C	125 °C	8
EDAC Inc. 325-016-500-109	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	Solder Eyelet(s)	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Single Edge	16	Single	Through Hole		0.1 "	2.54 mm	-65 ░C	125 °C	16	1	1	0.16 "	4.06 mm

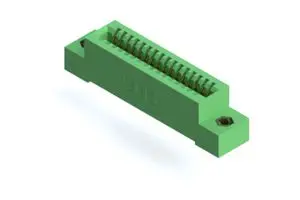

EDAC Inc. 325-016-520-107	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	Cantilever	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Solder	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Single Edge	16	Single	Through Hole		0.1 "	2.54 mm	-65 ░C	125 °C	16	1	1
EDAC Inc. 325-016-520-108	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	Cantilever	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Solder	Green	Female	3.18 mm	0.125 in	Gold	Non Specified - Single Edge	16	Single	Through Hole		0.1 "	2.54 mm	-65 ░C	125 °C	16	1	1
