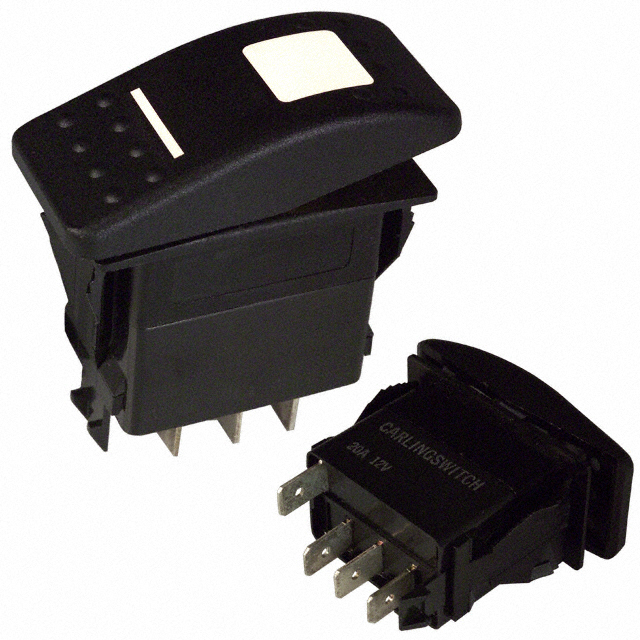

V6D2D66B Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER SPDT 20A 12V
| Part | Mechanical Life | Electrical Life | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - DC | Current Rating (Amps) | Color - Actuator/Cap | Actuator Type | Switch Function | Illumination Type, Color | Approval Agency | Mounting Type | Termination Style | Illumination Voltage (Nominal) | Actuator Marking | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | SPDT | 85 °C | -40 C | 36.83 mm | 21.08 mm | 12 V | 20 A | Black | Convex (Reverse V) - Illuminated | On-Off-On | Incandescent Red/Red | CSA UL VDE | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 12 VAC/DC | No Marking | IP66 IP68 |
Carling Technologies | 100000 Cycles | 100000 Cycles | SPDT | 85 °C | -40 C | 36.83 mm | 21.08 mm | 12 V | 20 A | Black | Convex (Reverse V) - Illuminated | On-Off-On | Green/Green Incandescent | CSA UL VDE | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 12 VAC/DC | No Marking | IP66 IP68 |
 Carling Technologies | 100000 Cycles | 100000 Cycles | SPDT | 85 °C | -40 C | 36.83 mm | 21.08 mm | 12 V | 20 A | Black | Convex (Reverse V) - Illuminated | On-Off-On | Incandescent White | CSA UL VDE | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 12 VAC/DC | No Marking | IP66 IP68 |
