745-112 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 112POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Read Out	Mounting Type	Number of Positions	Color	Number of Rows [custom]	Pitch	Pitch	Gender	Contact Finish	Card Type	Contact Type	Termination
EDAC Inc. 745-112-545-201	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever	Press-Fit

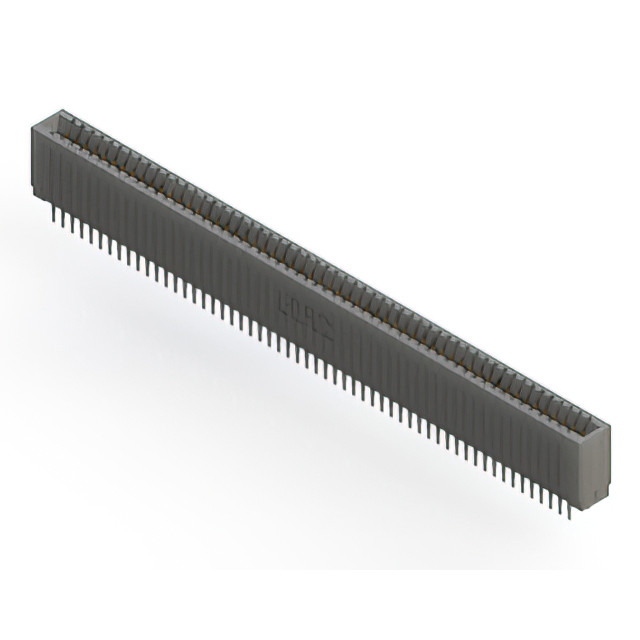

EDAC Inc. 745-112-560-201	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever Make Before Break	Press-Fit

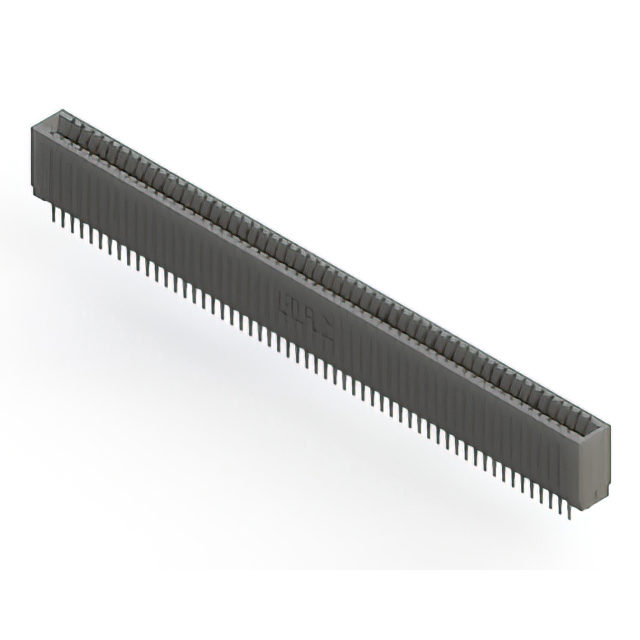

EDAC Inc. 745-112-525-201	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever	Press-Fit

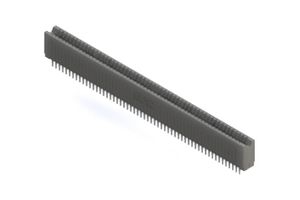

EDAC Inc. 745-112-520-206	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever	Press-Fit
EDAC Inc. 745-112-560-206	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever Make Before Break	Press-Fit
EDAC Inc. 745-112-541-201	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever	Press-Fit Wire Wrap
EDAC Inc. 745-112-540-206	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever	Press-Fit Wire Wrap
EDAC Inc. 745-112-520-201	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever	Press-Fit
EDAC Inc. 745-112-525-206	Polyester Thermoplastic	2	56	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Dual	Through Hole	112	Black	2	0.1 "	2.54 mm	Female	Gold	Non Specified - Dual Edge	Cantilever	Press-Fit
