R22316 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

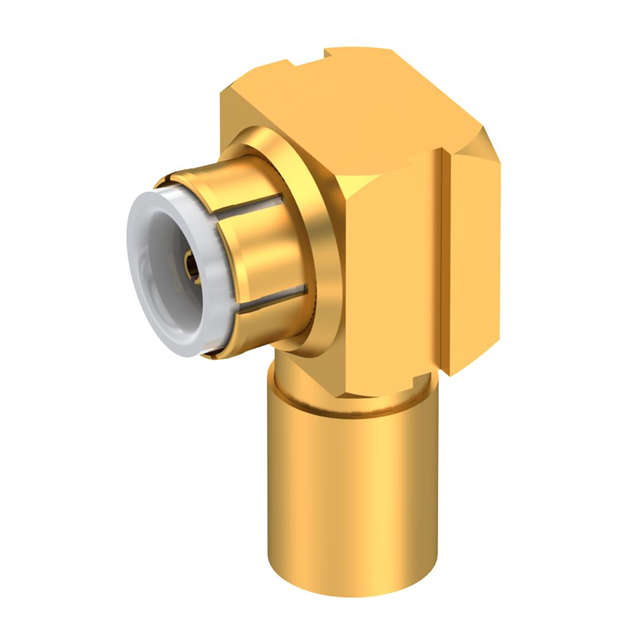

MMBX / RIGHT ANGLE PLUG SOLDER T
| Part | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Impedance | Frequency - Max [Max] | Number of Ports | Fastening Type | Contact Termination | Cable Group | Center Contact Material | Mounting Type | Connector Style | Shield Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | 250 V | 155 C | -55 C | Gold | 50 Ohms | 12.4 GHz | 1 | Snap-On | Solder | RG-405 (.085" Semi Rigid) | Beryllium Copper | Free Hanging (In-Line) Right Angle | MMBX | Solder | Plug Male Pin |
