052807 Series

Manufacturer: Molex

Catalog

CONN FPC TOP 12POS 1MM R/A

Part	Material Flammability Rating	FFC, FCB Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Flat Flex Type	Contact Material	Number of Positions	Connector/Contact Type	Height Above Board	Height Above Board	Contact Finish	Voltage Rating	Cable End Type	Pitch [x]	Pitch [x]	Mounting Type	Termination
Molex 0528071210	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	12	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin
Molex 0528071910	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	19	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin
Molex 0528072510	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze		Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin

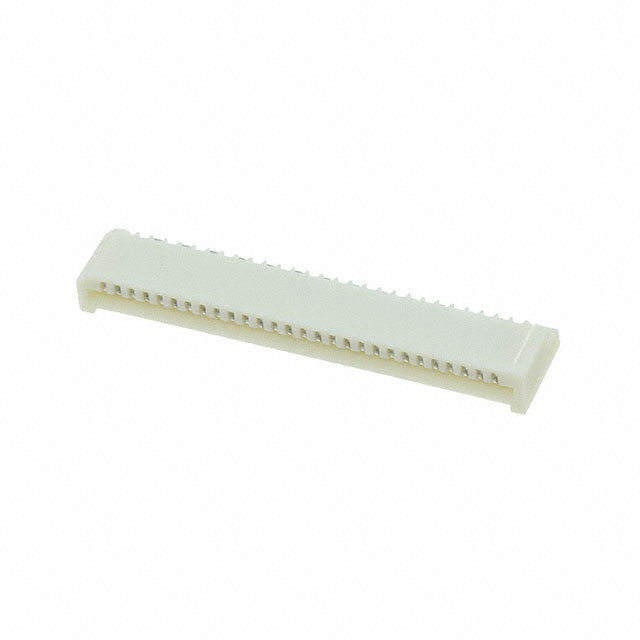

Molex 0528072810	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	28	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin
Molex 0528071110	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	11	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin
Molex 0528071510	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	15	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin

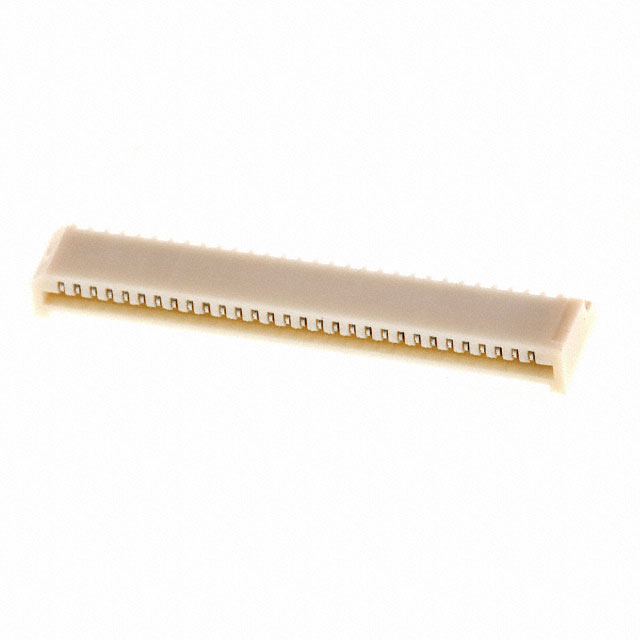

Molex 0528073010	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	30	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin

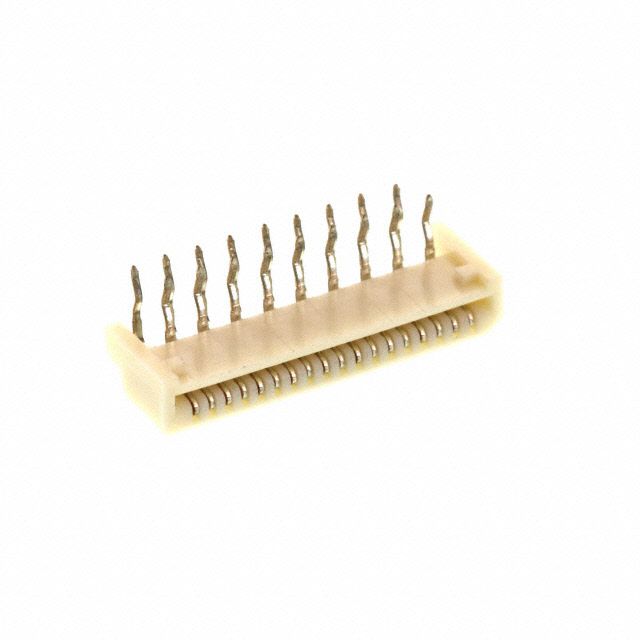

Molex 0528071810	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	18	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin
Molex 0528072710	UL94 V-0	0.3 mm	-20 C	80 C	0.5 A	FPC	Phosphor Bronze	27	Contacts Top	3.6 mm	0.142 in	Tin	50 V	Straight	0.039 in	1 mm	Through Hole Right Angle	Kinked Pin
