WA-1RX Series

Catalog

MICROSWITCH, STANDARD, PIN PLUNGER, SPST-NC, SCREW, 20 A

Part	Features	Switch Function	Circuit	Operating Force [Min]	Operating Force [Max]	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Overtravel [custom]	Overtravel [custom]	Operating Position	Operating Position	Termination Style	Current Rating (Amps)	Actuator Type	Mounting Type

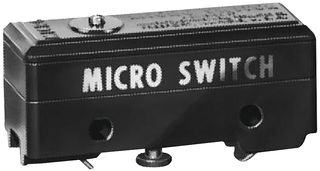

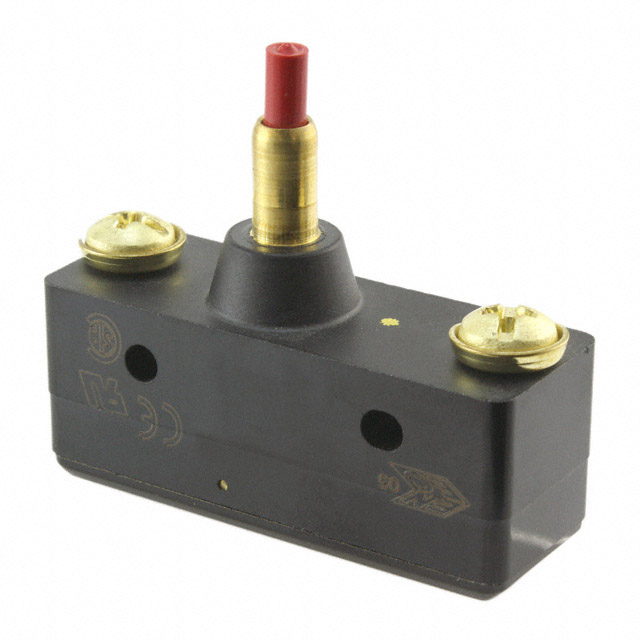

Honeywell Sensing and Productivity Solutions WA-1RX12-A4	Reset Function Reset Plunger on Bottom	On-Off	SPST-NC	113 gf	454 gf	20000000 Cycles	-55 C	85 °C	125 V	0.01 "	0.25 mm	16.76 mm	0.66 in	Screw Terminal	20 A	Round (Pin Plunger)	Chassis Mount

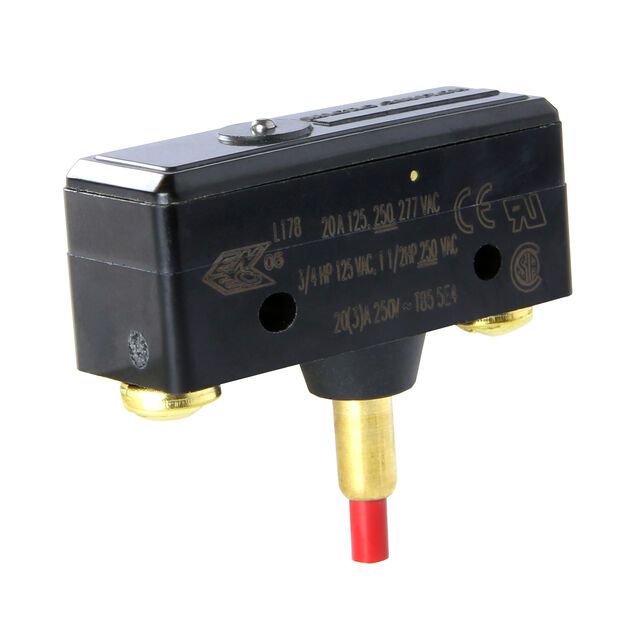

Honeywell Sensing and Productivity Solutions WA-1RX123-A4	Reset Function Reset Plunger on Bottom	On-Off	SPST-NC	113 gf	454 gf	20000000 Cycles	-55 C	85 °C	125 V	0.01 "	0.25 mm	16.76 mm	0.66 in	Screw Terminal	1 A	Round (Pin Plunger)	Chassis Mount
Honeywell Sensing and Productivity Solutions WA-1RX12-A41	Reset Function Reset Plunger on Bottom	On-Off	SPST-NC	113 gf	454 gf	20000000 Cycles	-55 C	85 °C	125 V	0.01 "	0.25 mm	16.76 mm	0.66 in	Screw Terminal	20 A	Round (Pin Plunger)	Chassis Mount
