396-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 35POS 0.125
| Part | Material - Insulation | Termination Rows | Mounting Type | Contact Material | Contact Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Read Out | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Contact Finish | Number of Positions/Bay/Row | Color | Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Wire Wrap | Gold | 35 | Black | Female | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Gold | 35 | Black | Female | |

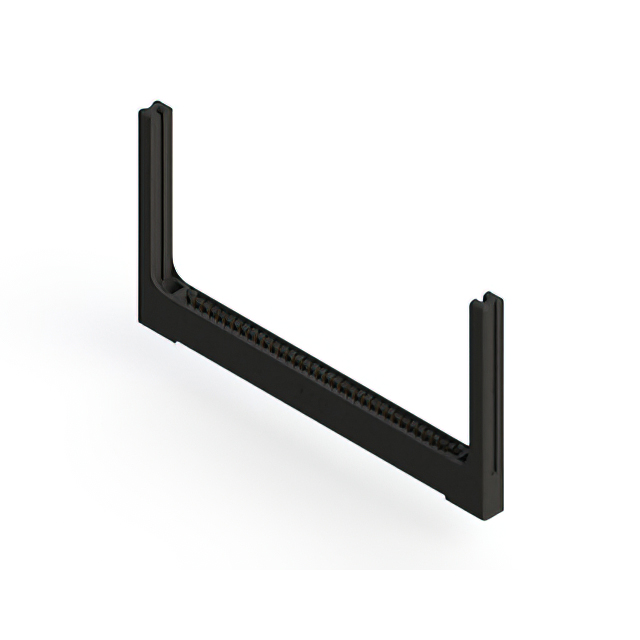

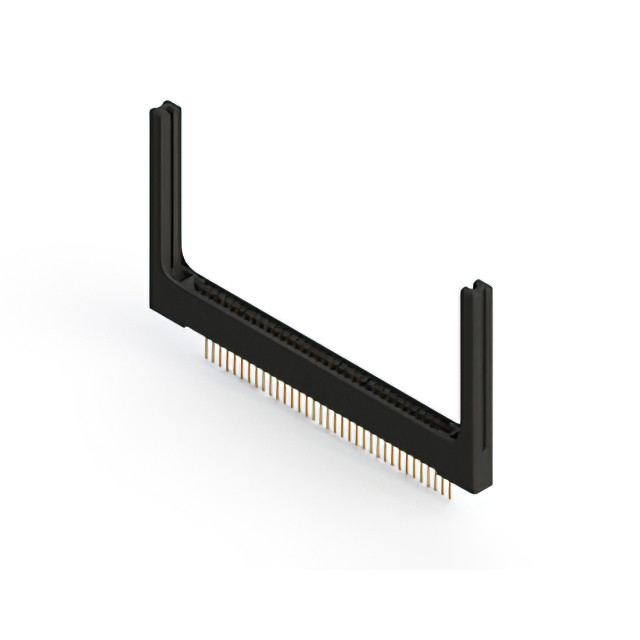

 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Gold | 35 | Black | Female | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Right Angle Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder Wire Wrap | Gold | 35 | Black | Female | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | Wire Wrap | Gold | 35 | Black | Female | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Solder | Gold | 35 | Black | Female | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Right Angle Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | Gold | 35 | Black | Female | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Gold | 35 | Black | Female | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Gold | 35 | Black | Female | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Copper Alloy | Cantilever | 1 | 0.25 Ám | 10 Áin | 35 | Single | 3.18 mm | 0.125 in | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Wire Wrap | Gold | 35 | Black | Female |
