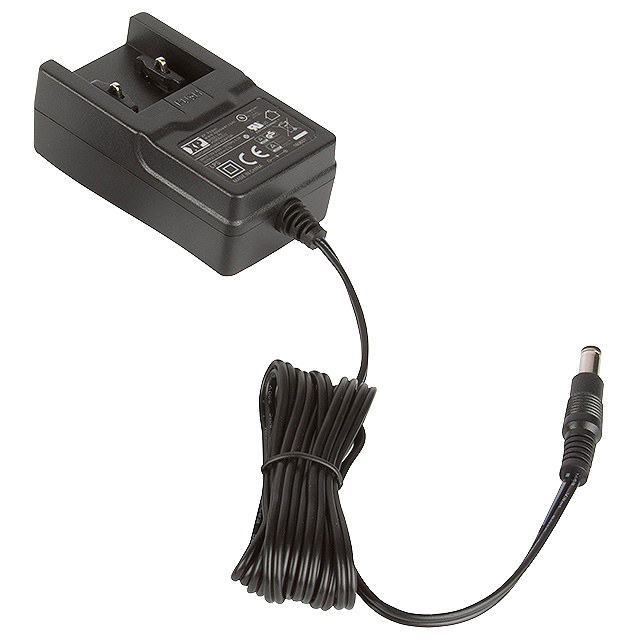

ACM06 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 5V 5W
| Part | Weight [custom] | Weight [custom] | Applications | Input Connector | Voltage - Output | Form | Standard Number | Power (Watts) | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | No Load Power Consumption | Region Utilized | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Cord Length | Cord Length | Input Type | Output Connector [diameter] | Output Connector | Output Connector [x] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 79.83 g | 0.176 lb | ITE (Commercial) Medical | Multi-Blade | 5 V | Wall Mount | 60601-1; 62368-1 | 5 W | 1 A | 0 °C | 60 °C | 1.67 in | 30.7 mm | 1.21 " | 2.89 in | 42.5 mm | 73.5 mm | 75 mW | International | CB CE | 264 VAC | 90 VAC | 70.9 " | 1.8 m | Multi-Blade (Sold Separately) | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | CoC Tier 2 Level VI |
